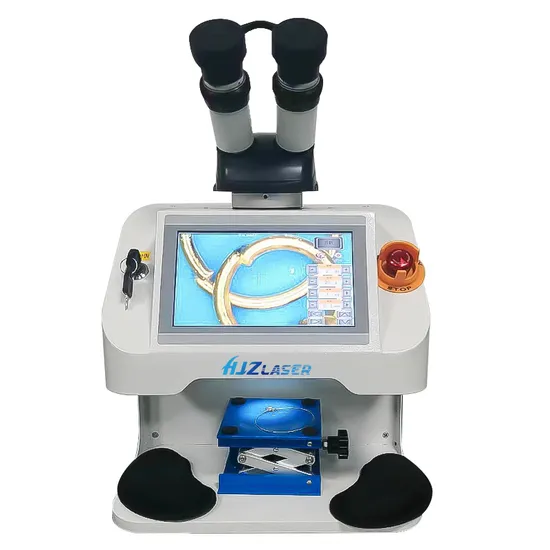

Small Portable Laptop YAG Laser Micro Spot Welding Machine for Jewelry Gold Silver Steel Ring Dental Metal Frame
Basic Info.
Model NO.
HJZ-JW 200W
Technical Class
Pulse Laser
Control
Automatic
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Optical Fiber Transmission Laser Welding Machine
Terms
Technical Parameters
Power
200W
Working Size
1000X600mm
Table
up & Down
Software
Rdcam
Package
Standard Crate for Export
Working Power
220V/50Hz/1.5kVA
Engraving Speed
1200mm/S
Process Material
Non-Metal Materials
Marking Varieties
Characters, Graphs, Images, Trademarks
Lifespan
Over 20, 000 Hours
Water Chiller
Doluyo
Watt
500W 1000W 1500W
Laser Source
Raycus
Transport Package
Standard Plywood Packing for Export
Specification
1650X1250X1050MM
Trademark
HJZ laser
Origin
Wuhan, China
Production Capacity
300sets/Month
Product Description
Small Portable Laptop YAG Laser Micro Spot Welding Machine for Jewelry Gold Silver Steel Ring Dental Metal Frame
Product Description:
This welder is specially developed for laser welding of jewelry by HJZlaser and mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application.The spot welding process is thermal conduction, ie. The laser radiation heats the surface of work piece,and the surface heat diffuse to the interior throught themal conduction and melts the work piece by controlling the wideth, energy, peak power and repeating frequency of laser- pulse to form specific molten pool. Because of its uniqueadvantage,it is widely used in the process of gold and silver jewelry and welding of mini and small parts.
Advantages:
High speed,high efficiency,deep,small deformation,small heat effect area,high welding quality,pollution free welding spot,environment friendly.
Features:
1.Small heat affected zone;
2.Does not lead to the product deformation welding the weld depth is big;
3.Welding is firm;
4.Melting fully,without trachoma,leave no trace repair;
5.Can work continuously 24 hour a day.
Application:
Widely used in precision machining of small parts,for example:Jewelry, denture dentures, communication tools, metal products, watches,stainless steel and other industries.
Technology parameters:
| Parameter | Value | Value |
| Model | HJZ-W200 | HJZ-W300 |
| Max laser output power | 200W | 300W |
| Laser wavelength | 1064nm | |
| Laser spot adjust range | 0.1-2.0mm | |
| Pulse width | ≤20ms | |
| Welding frequency | 0-40Hz | |
| Aimed at position demand | CCD plus red light(optional) | |
| Power demand | 220±5%/50Hz/40A | |
| Holistic power | 4.5KW | 6KW |
| Cooling | Water | Water |
| Use of the environment | Clan and dust-free source; 13ºC~28ºC,humidity 5%~75% | Clan and dust-free source; 13ºC~28ºC,humidity 5%~75% |
