Adhesives Sealants Production Line Thermal Conductive Adhesive Planetary Mixer Machine

Product Description

Product Introduction The main equipment of Adhesive Production Line: Mixing equipment, Extrusion equipment, Packaging equipment
Mixing Equipment: For middle and low viscosity products, often use dual-shaft or tri-shaft multi-function dispersing mixer; for high viscosity products, usually choose Double Planetary Mixer; Whichever product , there are mixing, dispersing, scraper etc. The machine is closed design, which can be evacuated, and with the heating and cooling system to achieve constant temperature stirring. Extrusion Equipment: Including fixed barrel type and lifting with barrel type, commonly used at the back of mixing machine and front of the packaging equipment, extruding material from the barrel by the strong extrusion pressure and match with the barrel seal structure; can customize vacuum extrusion machine.
Dispensing Equipment: can be divided into semi-auto type and fully automatic type, can be customized according to the filling specifications and the form of filling container. Track design reduces space. Control the position of the cylinder through remote control, which is convenient and efficient.

Batch Capacity	500-3,000 KG
System Capacity	300-10,000 T/year
Application Materials	* Single-component adhesives and two-components adhesives:* Polyurethane adhesives, epoxy adhesives, rubber adhesives, etc.* PU sealants, silicone sealants, electronic sealants, acrylic sealant, structural adhesive, white glue, etc.* Dental sealants and materials;
Applicable Materials	Various slurries with viscosity less than 1,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc.
Mixing Equipment	SXJB series: Powerful Planetary Dispersing Mixer SJBD series: Dual shaft Multi-functional Dispersing Mixer, Triple shaft Multi-functional Dispersing Mixer
Heating Method	Water Heating, Oil Heating, Steam Heating
Vacuum Type	Rotary Vane Vacuum PumpWater Ring Vacuum Pump (vacuum drying)
Discharge System	Fixed type (Discharge from top of pressing plate)Tank lifting type (Discharge from the tank bottom outlet)Note: protection grid/door optional
Filling Method	Semi-auto Filling Machine, Auto Filling Machine, suitable for filling 300ml cartridge;Filling pails (1kg, 25kg, 200kgs ect.)
Characteristics	Various types of blades can be selected according to the viscosity and characteristics of materials;Tank automatic moving on the track;Automatic raw materials batching and feeding;High automation degree.

Product Display
Product Details High Mixing Efficiency, Wide Application

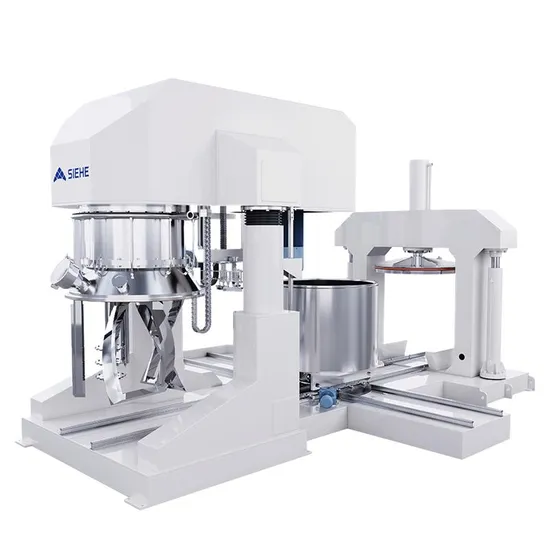

The Dual Planetary Mixer has two sets of agitators and a set of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed rapidly under the action of strong shearing and kneading force.
Safe and Convenient Operation
Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability; with barrel holding device for fixing the tank rapidly to prevent any possible accident due to tank displacement. There is sliding rail device between the mixing and extruding tank, convenient for moving tanks, realizing the integrated operation of mixing and discharging.
No Residue on the Wall, Clean Discharging
There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, increasing the mixing effect.
Customized Options
Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc. Material can be customized to be SS316L or special Spraying materials. Industrial Applications
Auxiliary Machines Mixing machines available Dual shaft mixer Three shaft mixer Double planetary mixer

Materials discharging and tank cleaning machine
Extrusion machine for materials discharging Container cleaning machine

Finished product filling machines
Sausages semi auto filling machine Cartridges semi auto filling machine Cartridges full auto filling machine
Other related machines used
Vacuum and condenser system Oil heating machine Water cooling machine
Related Products
Lab Double Planetary Mixer Mid Batch Double Planetary Mixer
Production Type Double Planetary Mixer Adhesive & Sealant Complete Production Line
