Yuanquan Very Exquisite Non Woven Oven with Single Conveyor

Product Description

Product Description

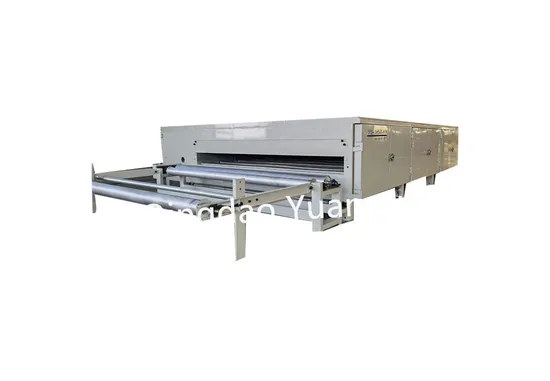

Oven With single conveyor for Non Woven
This machine can produce non rubber cotton, silk like cotton, etc. This product is widely used in clothing, embroidery, bedding, furniture, tourism products, etc.
Product Parameters

Working Width		3200-4500mm Or customized
Size of Main Oven Body		6000*5200*1300mm
Height of Heating Layer		350mm Or customized
Working Speed		3-20m/min
Weight(Kg)		About 5000
Heating Mode		Natural gas heating or electric heating (maximum 260kw)
Burner: with alarm control function		NONE
Thermal insulation material		Internal thermal insulation material aluminum silicate rock wool board(100mm)
Sealing Material		High temperature resistant silicone nitrile rubber strip seal
Temperature control range in the oven box		≤160-200ºC
Power	Motor for Driving	1*2.2kw=2.2kw (Frequency conversion control)
	Motor for Fan	2*5.5kw=11kw (Frequency conversion control)
	Heating Tube	2*130kw=260kw

Detailed Photos





Main Features1.Heating mode: two burners or electric heating can be used; The circulating fan penetrates the hot air through the air duct, blows it down and sucks it up;
2. Achieve the maximum energy-saving effect;
3.The rack is welded with 120mm square pipe and connected with 120mm square pipe; Structural stability
4.The transmission mesh roller adopts seamless steel pipe and chrome plating after fine grinding; The pressing roller is made of stainless steel;
5.Frame with front and rear access curtain; Each 1000mm long, effectively ensuring deviation correction and stable operation of motor;
6.Single layer mesh belt drives separately, and each main drive adopts frequency conversion control;
7.The bearing adopts domestic famous brand, Dongguan tr bearing (with shell) high temperature
8.Fine turning and grinding of drum shaft, static / dynamic balance by computer balancing machine, control and adjustment within 0.03-0.05mm.
9.The motor adopts red flag motor, and the reducer adopts Shengbang reducer, which is directly supplied by the manufacturer with quality assurance.
10.All transmission parts are treated with phosphating and rust prevention. The phosphating color is uniform and black, with strong adhesion and no fading.
