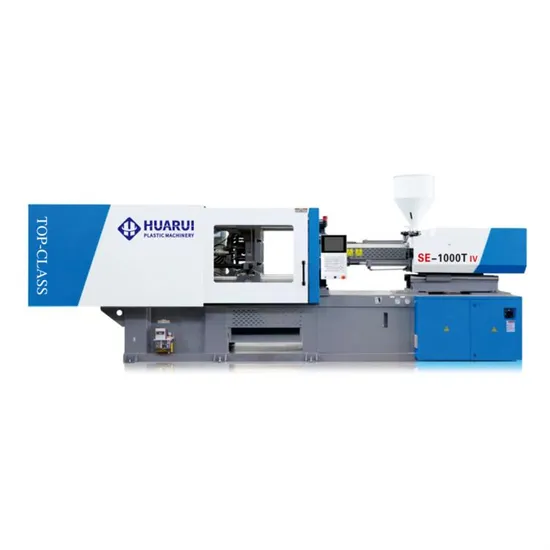

1000ton Plastic Injection Molding Machine for Plastic Fruit Vegetable Crate Box Basket

1000ton Plastic Injection Molding Machine for Plastic Fruit Vegetable Crate Box Basket

US$150,000.00-180,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-1000T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
861/1033/1221/1424cm³/Sec
Weight
50000kg
Motor Power
61kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
12*2.45*3.8m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Vegetable Fruit Crate Box Turnover Box Molding Plastic Injection Molding Machine
Product Parameters
SE-1000T IV Plastic Injection Molding Machine Information
Item Unit A B C D
Screw diameter mm 105 115 125 135
Theoretical shot volume cm³ 4979 5972 7056 8230
Shot weight (PS) g 4531 5435 6421 7489
Shot weight (PS) oz 159.8 191.7 226.5 264.2
Length/Diameter ratio L/D 24.1 22 20.2 18.7
Injection pressure Bar 2032 1694 1434 1229
Injection rate cm³/sec 861 1033 1221 1424
Max.screw speed rpm 115
Clamping force KN 10000
Max.daylight mm 1660*1660
Open stroke mm 1220
Space Between Tie-bars mm 1160*1160
Min mould dimension mm 450
Mould thickness range mm 1160
Ejector force KN 270
Ejector stroke mm 320
No.of ejector pins unit 21
Max.motor power KW 61+61
System pressure MPa 175
Heater input power KW 71
Oil filling capacity L 1200
Machine size M 12*2.45*3.8
Net weight KG 50000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
