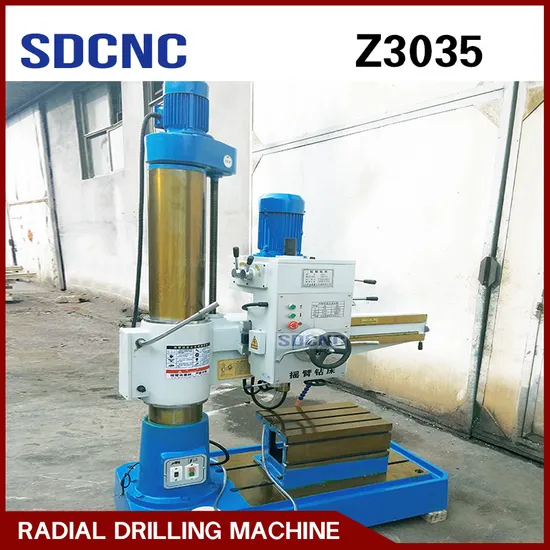

Z3035 Radial Arm Drilling Machine Metal Hole Drill Machine

Product Description

Product Description
Product Parameters

Specifications	Z3035×10
Max.drilling diameter(mm)	35
Distance from spindle nose to table surface(mm)	300~1000
Distance from spindle axis to column surface (mm)	260~1200
Spindle travel(mm)	200
Spindle taper	MT4
Spindle speed range (rpm)	75-1220
Spindle speed steps	6
Spindle feed range (mm/r)	0.10/0.16/0.22
Spindle feed steps	3
Main motor power (kw)	2.2
Overall dimension(mm)	1500×750×2150
N/W(Kg)	1200

Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
