Horizontal Precision Delin Quanzhou, China Milling Multispindle Drilling Machine AC-Wsk-8z

Product Description

Product Description
1.8/10-Axis Drilling Milling&Tapping Machine
It is key models to be promoted in 2020.This machine's advantages are fast speed,high accuracy,the surface
smooth is high,products
can rotate 360 degrees and the operation is simple.Suitable for machining copper and zinc alloy materials.
2. Technical Advantages
1) We adopts the CNC operation systems from Taiwan Delta Company, and use 8 inch colorful LCD HMI monitor
to its human-computer interface. The monitor itself can design simple LCD screen, through which you can edit the
system, making the operation easy to learn. Also you can choose PC screen display to edit software, so as to supervise
and inspect programs. By computer screen RS232, programs can be transmitted and executed by PC, or transmitted

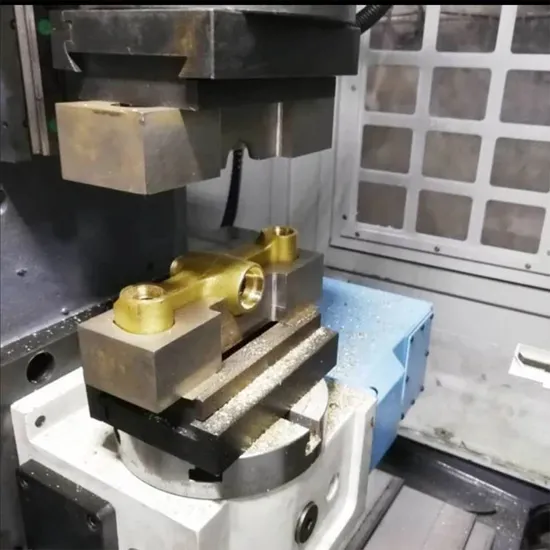

directly by USB. 2) The clamping uses hydraulic double clamping vice, available to install and high accuracy of resetting. Cooling,
blowing and clamping are together when products moving.
3) Using double tracking mode for tapping, perfect thread, accuracy tapping depth control and tapping fast.
4) The machine uses a totally enclosed protective cover and automatic left sliding door. It is of easy operation and
good water resistance. Its screw-type chip conveyor remove chips quickly and easily.
5) All sliding surfaces are equipped with self-lubricating pump to ensure that the machine could serve long.
3.Selling Point
1) The price is half of machining center.
2) Processing benefits:an ordinary single-hole have 8-tools, the processing time is about 35 seconds, the processing
center should be about 50 seconds, and the efficiency is increased by 30%.(In the machining center the tool change is
slower while in ten-axis drilling and driting machine the tool can telescopic transformation directly.But the number of tools
stored in the machining center is more.)
3) Good processing quality, higher surface roughness,the error can be controlled at ±0.05 ,it can perform arc processing.
4) The operation is more easier.
5) With rotatable sub-rudder head, which is equivalent to the fourth axis of the machining center, the product can be
processed 360 degrees.
4. Application
Widely used in machining of brass, copper or aluminum alloy items, such as valves, sanitaryware, door & window
hardware, household appliances, auto parts, etc.
Specification

Product Parameter
Parameter Name	Unit	AC-WSK-8Z	AC-WSK-10Z
Maximum Drilling Capability	mm	45	45
Maximum Tapping Capability	mm	M45	M45
Spindle Quantity	pcs	8	10
Spindle Nose	/	ER40	ER40
Clamping Mode	/	Hydraulic	Hydraulic
Strode of X/Y/Z axis (maximum)	mm	550/300/300	550/300/300
Speed of X/Y/Z axis (maximum)	mm/min	20000/15000/20000	20000/15000/20000
Positioning Accuracy	mm	±0.008	±0.008
Repeatability Precision	mm	±0.005	±0.005
Floor area of the machine	mm	2280*2100*1800	2280*2100*1800
Power Capacity	kw	11	14.5

Packing & Delivery
Company Profile
Delin Intelligent Technology Co., Ltd
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing
machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting
machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings, plumbing fittings,
sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality,
reasonable prices and stylish designs.
