Hollow Block Machine Cement Brick Making Machine Automatic Block Machine

Product Description

Product Description

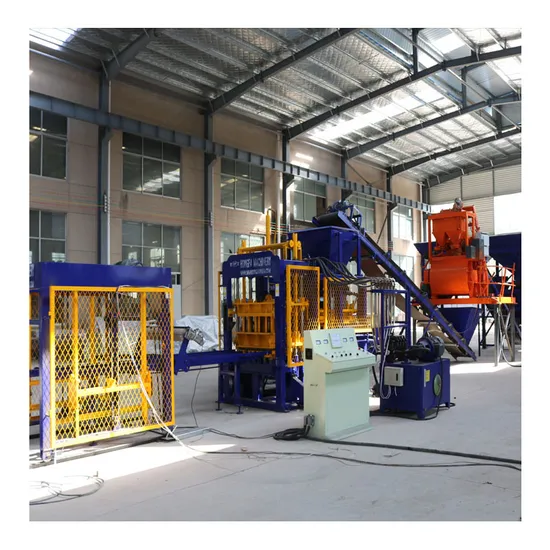

1.Advantages& Main Technical Parameter The QT6-15 fully automatic hydraulic concrete block machine is Hongfa's patented brick machine, best seller in Africa with competitive price and stable performance.It adopts channel steel stander making the equipment more firm and the mould and the squeeze head Orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.The machine adopts PLC control, and realizes automatic pallets-supplying, material-distributing, and brick-discharging.with the high production efficiency.
1).High quality reducer
2).PLC control system,precise operation,Easy to operate.
3).This block making machine is wear-resistant equipped different molds to produce various blocks.

Overall Dimension	7450x2450x2900 mm
Rated Pressure	16 MPa
Main Vibration form	Platform Vibration
Vibration frequncy	2800-5100 r*min
Pallet size	900*700 mm
Molding cycle	15-20 S
Exciting power	60 KN
Overall power	32 KW

Detailed Photos
1.Molding InformationThe sample size and detailed parameters of more brick types are shown in the following figure.You can choose the mold you need according to these specifications.



2.Details and other accessoies The following appliances are greatly convenient for the use of the block machine.
Cement Silo
50-100T cement silos are commonly used in brick machine production lines: There are two types: split type and integral type:
(1)The split type is assembled with screws and sealing strips, which is convenient for transportation, saving transportation space and freight, but the cost is high and the installation period is long. However, the split type is generally used for foreign trade. (2) The integral welding type has low cost and short installation period, but it is not convenient for transportation (only
50T can be placed in a 40-foot high cabinet), and large-capacity ones generally do not have the conditions for welding and installation at the customer's location.
Batching Machine
PL series concrete batching machine is a front-end automatic batching equipment used in conjunction with a mixer. It can automatically complete the batching process of sand, stone, cement and other species according to the concrete ratio requirements designed by the user. The equipment is composed of a storage hopper, a weighing system, a feeding system, an electronic control system and other parts. The feeding methods include belt conveyors.
JS500 mixer
The JS series concrete mixer is different from the JQ series. It is a twin-shaft forced mixer. It has the dual advantages of independent operation and the ability to form a concrete mixing station with supporting products such as the PL series batching machine. It can mix dry hard concrete, plastic concrete, lightweight aggregate concrete and various mortars. The whole machine design of this series of products is reasonable, the layout is novel, and it is easy to use and maintain.
Conveyor Belt 8M
The mixer mixes the raw materials and sends them to the hopper via a conveyor belt.


stacker
The block stacker is one of our new products , it can take 3-4 pallets block per time , and stacking 4-5 layers block . The
forklift cant ake 10-20 pallets block , save work time , reduce the labor cost and curing land area .Then reduce the block
manufacturing cost , is one of our best selling products
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
