Sn47Zn53 Zinc alloy wire,Target materials, sputtering target, good performance

Product Description

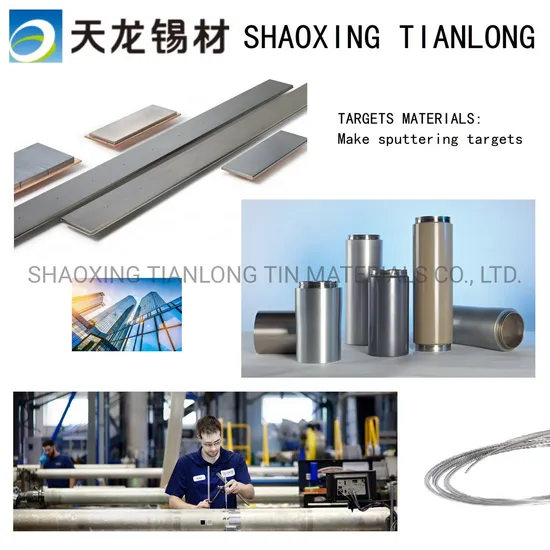

Sn47Zn53 is an ideal material for making metal targets, it can be used for cast rotary targets and thermally sprayed rotary targets, providing optimal process stability and performance.
The targets are widely used in Low-E glass, electrochromic glass coating applications.
We have serial metal for making metal targets, such as Zn wire, Sn wire, SnZn wire, ZnAl wire, Al wire, and we have a professional R & D team that can customize products according to customer's requirements.
Our Zinc Tin Alloy wire is a Metal spraying material. It is a kind of electronic welding material specialized for metal spraying of the end face of metalized film capacitor. Since the official implementation of EU "RoHS" instruction on July 1st, 2006, leaded metal spraying materials were forbidden in a short period of time. The performance and quality of the lead-free metal spraying materials of Tianlong are the same as or superior to the similar overseas products. The capacitors produced by the company have been widely used in high-speed rail, automobiles, new energy, and aerospace fields.
The surface of the Zinc Tin wire is smooth and bright, with no broken wires, no greasy dirty and burrs, no scratches and scars, no jam in the process of use.
The Zinc Tin wire conforms to the requirements of EU ROHS, REACH, and relevant domestic laws regulations for environmental protection. Product Description Product code:HYSn47Zn53
Chemical composition:

Item	Main elements (%)		Impurities (≤)%
	Sn	Zn	Pb	Cd	Fe	TTL
HYSnZn53	45-49	REMAINING	0.02	0.002	0.012	0.05
HYSnZn60	38-42	REMAINING
HYSnZn70	28-32	REMAINING
HYSnZn75	23-27	REMAINING
HYSnZn80	18-22	REMAINING
HYSnZn90	8-12	REMAINING

Mechanical characteristics:

Item	Specific Gravity (g/cm3)	Melting Range (ºC)	Volume Resistivity (mΩ·mm2/m) 20ºC	Tensile Strength Rm (N/mm2)	Elongation After Fracture A 100mm(%)
HYSnZn53	7.0-7.3	198-362	≤ 83	≥ 60	≥ 20
HYSnZn60		198-375	≤ 80
HYSnZn70		198-385	≤ 78
HYSnZn75		198-390	≤ 76
HYSnZn80		198-395	≤ 74
HYSnZn90		198-405	≤ 72

Diameter: 1.0mm≤Ф≤3.20mm
Packaging & Shipping
Product packing:

Hard paper drum	100-150 kg	outer diameter 550 mm, inner diameter300mm, variable height
Hard paper drum	20-50 kg	outer diameter 400 mm, inner diameter190mm. variable height
Plastic spool	15 kg	flange300mm, width100mm, center hole:55mm
Plastic spool	15 kg	flange270mm, width103mm, center hole:55mm
bundle	20-40 kg

Pallet will be used, such as 1100mmX1100mm, 1200mmX800mm, 1000mmX1000mm, 800mmX800mm.
Various products of Zinc Tin Wire, providing product images and basic parameters with each Wire; We are a professional Chinese manufacturer of Zinc Tin Wire, and look forward to your cooperation!
