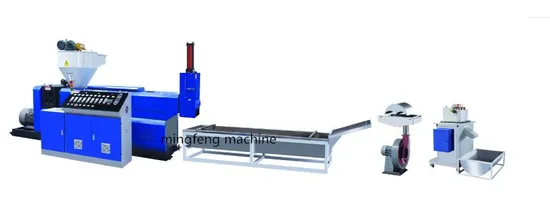

Mf-C Model Single Stage Water Cooling Plastic Recycling Machine

Product Description

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast screen changer and automatic temperature-controller.
1. Hot-cutting & wind cooling.
2. It is equipped with automatic constant temperature, motorized net changer (hydraulic net changer is optional).
3. It also can pelletize the crushing material after fitting with an force loader.
4. The cutting machine adopts speed regulating motor. Which can cut the material according to the feeding speed of the extruder, with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.
5. Feeding unit adopts force feeder.
6. The helical gear reducer with hard teeth is applied to the extruder and the screw.
7. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.

Output	150-200kg/h
Applicable voltage	380v/50hz/3ph
screw	Diameter: 120mm, length:2400mm, material: 38CR with vent, exhaust screw;
Gear box	ZLYJ: 200;
Motor	37KW
Inverter	Adopt international famous brand: HOLIP 37kw;
screen changer	Hydraulic upper and lower plate size: 220mm * 220mm; working pressure: ≤ 35MPa
Control box	Temperature control display: 6 Zone; Schneider and China ZHENGTAI products are used for electrical appliances
Heating	Material: Ceramic;Heating voltage: 220 V / 50 Hz;Heating power: 2kw-3kw;
Hopper	Open parallel hopper
Pelletizing	Knife: two;Hot cutting;
Dryer	motor:5.5kw
oil box	Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L;
Random accessories	Tool box (button switch, heating rod, electric couple, scissors, shovel, pliers, etc. are randomly distributed)

Certifications
Packaging & Shipping
After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Boy:Mr.Alex
Warmly welcome you to contact us freely !
FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
