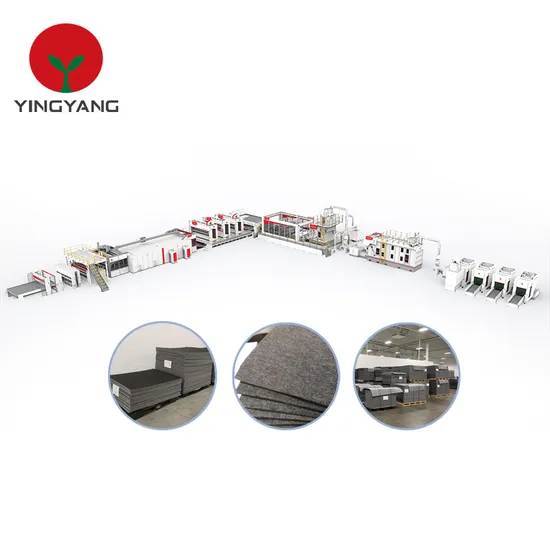

Automotive Interior Nonwovens Needle Punched Production Line

Product Description

Automotive Interior Nonwovens Needle Punched Production Line
Product Description
It coud produce medium and high grade needle punched nonwoven fabric for automobile interior decoration blanket etc.
1. Applied fiber: PET and PP etc fiber Type: 2.5D-10D× 51-76mm
2. Product specification: 100-800GSM
3. Capacity: 200kg/h for carding machine(take 6D fiber as raw material)
4. Control method: PLC and touch screen controlling system
Technical process of the production line:
1. Bale openers 2. Pre-opener 3. Big Blender
4. Main opener 5. Hopper 6. Air-flow Vibration feeder
7. Double-cylinder carding machine 8. Cross lapper 9. Batt Feeder
10. Pre-needle punching machine
11.5 sets of main needle punching machine
12. Three roller ironing machine
13. Tension frame
14. Winder

Product net width:	≤4500mm
Product specification:	≤1500g/

The completely sealing design and the special air control system design makes the air injected in between the cylinder and the wall board, to prevent fiber causing issues with bearing wrap ups. And the special design for the triangle area improve the airflow. Negative aire pressure controls inside the card, which reduce greatly the cleaning frequency and maintenance time.
Modual design of the anti-turbulence plate and machine frame, it is more convenient for machine setup and maintenance.
The cover is aluminum alloy sections and the side plate of the machine cover is organic glass, and the upper side plate and top cover is separated designed, which is convenient for maintenance and easy to monitor the machine running situation.
Cylinder and all main rollers are rolled from armor plate, which are treated with the special processing technology ensures the straightness, runout and dynamic balance of the roller without deformation. Very long lifespan and very high accuracy

Main production line
Geotextile production line	Acoustic fiber board production line	Automotive interior nonwoven production line	Synthetic leather substrate production line
Thermal bonded wadding production line	Through -air bonded nonwoven production line	Spun-bonded nonwoven production line	Spun-laced nonwoven production line
Filter felt production line	Needle punched wipe production line	Scrubbing pad nonwoven production line	Comforter filling production line
Airlay felt nonwoven production line	Glass fiber production line	Jute felt needle punched production line	Geo-synthetic clay liners lamination production line
