6/8/10/12/14 Cubic Meter Concrete Mixer Truck Useing for Concrete Mixing Plant Needs

Product Description

Product Description

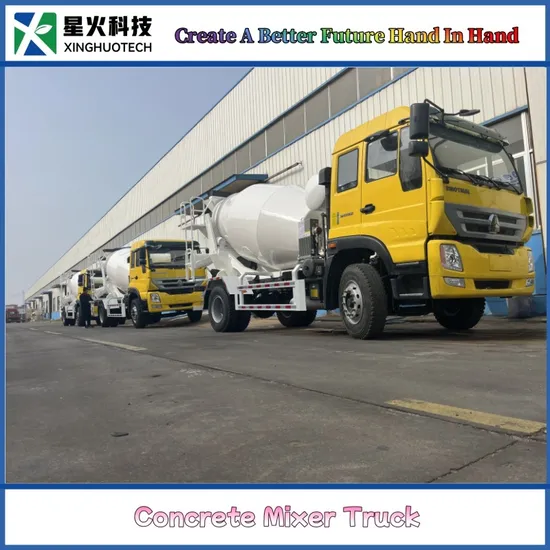

Concrete Mixer Truck MarvelThe concrete mixer truck is a specialized vehicle meticulously designed for the efficient transportation of construction concrete. These trucks boast state-of-the-art cylindrical mixing drums that ensure the safe transit of mixed concrete. During the journey, the mixing drum perpetually rotates, guaranteeing that the concrete retains its optimal fluid state and does not solidify, ensuring readiness upon arrival.
A pivotal component of any concrete mixer truck is the mixing drum, a masterpiece of engineering. The XinghuoTech mixer drum design has reached new heights in optimization, boasting an impressively low residual discharge rate coupled with outstanding concrete uniformity. Under typical working conditions, our mixing drum ensures that there is no overflow or slurry leakage, even when fully loaded to its rated capacity, thereby maintaining the integrity of the load.
When it comes to concrete mixing output, XinghuoTech proudly offers a diverse range of concrete mixer trucks with varying capacities to cater to all construction needs: available capacities include 6 cubic meters, 7 cubic meters, 8 cubic meters, 9 cubic meters, 10 cubic meters, 12 cubic meters, and even a robust 14 cubic meters.
Analyzing the chassis layout of our concrete mixer trucks, XinghuoTech provides an extensive selection, including 2-axle, 3-axle, 4-axle, and heavy-duty 6-axle semi-trailer configurations, fully customizable to meet specific project requirements.
From a chassis manufacturing perspective, XinghuoTech is versatile, producing concrete mixer trucks on chassis sourced from renowned domestic manufacturers such as SHACMAN, Sinotruk, HOWO, FAW, Dongfeng, Foton, Chenglong, Dayun, among others. We also accommodate chassis from other prestigious international brands, ensuring global compatibility.
We offer specialized chassis configuration solutions, expertly tailored to meet the vehicle regulations, emission standards, steering preferences, and concrete loading capacities specific to the client's country, ensuring seamless integration and unparalleled performance.
Our Advantages Increased Durability: We utilize premium steel from Wuhan Iron and Steel and Baosteel, strategically designing the structure with varying thicknesses at specific locations. This, coupled with the installation of wear-resistant blades, extends the tank's lifespan by 1.5 times compared to typical industry standards.
Distinctive Design: Featuring modified logarithmic spiral blades, meticulously crafted through precise cold-pressing molds. This ensures rapid feeding and discharging while maintaining the uniformity of the concrete mix.
Superior Equipment: Equipped with state-of-the-art CNC cutting machines, advanced automatic welding systems, and multiple sets of independently developed tooling fixtures. These elements come together to uphold the highest standards of product quality.
Innovative Patented Technology: We proudly hold numerous national patents on innovative technologies, including blade curve designs, anti-torsion secondary beams, and water tank heating systems, showcasing our commitment to cutting-edge advancements.
Advanced Electrostatic Powder Spraying: Our automated powder coating line embodies the principles of Industry 4.0. It seamlessly integrates 14 intricate processes through a state-of-the-art suspension system, automated heavy-duty conveyance, and an intelligent central control network, achieving a fully automated and smart electrostatic powder spraying process tailored for specialized vehicles.
Premium Configuration: Our mixer trucks exclusively incorporate high-end hydraulic systems sourced from leading manufacturers in Germany, Italy, and the United States, ensuring unmatched performance and reliability.
Product Parameters

Category	Component Name	XCMT-8	XCMT-9	XCMT-10	XCMT-12	XCMT-14
Mixing drum system	Concrete Mixing Capacity	8 m³	9 m³	10 m³	12 m³	14 m³
	Geometric Volume	12.3 m³	13.8 m³	15.4 m³	18.4 m³	21 m³
	Barrel Wall	Q355, 4mm	Q355, 5mm	Q355, 5mm	Q355, 5mm	Q355, 6mm
	Mixing Blades	Q355, 4mm	Q355, 5mm	Q355, 5mm	Q355, 5mm	Q355, 6mm
	Dish End	16Mn, 6mm	16Mn, 8mm	16Mn, 8mm	16Mn, 8mm	16Mn, 8mm
	Loading Speed	≥ 2.4 m³/min	≥ 2.5 m³/min	≥ 2.5 m³/min	≥ 2.6 m³/min	≥ 3 m³/min
	Discharging Speed	≥ 1.65 m³/min	≥ 1.8 m³/min	≥ 1.8 m³/min	≥ 1.9 m³/min	≥ 2.1 m³/min
	Rest rate (%)	≤ 0.3%	≤ 0.4%	≤ 0.4%	≤ 0.5%	≤ 0.5%
	Mixer Speed	0-16 rpm	0-16 rpm	0-16 rpm	0-16 rpm	0-16 rpm
	Mixer Tank angle	16°	16°	16°	16°	16°
	Water tank	With a scale	With a scale	With a scale	With a scale	With a scale
Mixing power system	Reducer	PMP6.5	PMP6.5	PMP6.5	PMP7Y	PMP7Y
	Pump	PMP90	PMP90	PMP90	PMP110	PMP110
	Motor	PMP90	PMP90	PMP90	PMP110	PMP110
	Radiator	18L	18L	18L	18L	26L
Attachment configuration	Discharge Chute	1400 mm	1400 mm	1400 mm	1400 mm	1400 mm
	Water Filling	Input Water on one side	Input Water on one side	Input Water on one side	Input Water on one side	Input Water on one side
	Water Gun	1 piece	1 piece	1 piece	1 piece	1 piece
	Water Hose	4000mm(1 piece)	4000mm(1 piece)	4000mm(1 piece)	4000mm(1 piece)	4000mm(1 piece)
	Man Hole	520mm	520mm	520mm	520mm	520mm
	Ladder & Platfrom	yes	yes	yes	yes	yes
	Rubber Cover	yes	yes	yes	yes	yes
	Mud Spillage Bucket	yes	yes	yes	yes	yes
	Roller Rail Protect Cover Belt	yes	yes	yes	yes	yes
	Fender	yes	yes	yes	yes	yes
	Rear Protect Bar	yes	yes	yes	yes	yes
	Protective barriers on both sides	yes	yes	yes	yes	yes
	Signal Light	yes	yes	yes	yes	yes
	Phosphor stripes	yes	yes	yes	yes	yes
Chassis system	Chassis brand	SHACMAN,Sinotruk,HOWO,FAW, Dongfeng,Foton,Chenglong,Dayun,etc.
	Chassis Model	Provide specialized chassis configuration solutions based on vehicle regulations, emission standards, left and right steering wheels, loading capacity, etc. in the customer's country.

Company Profile
Zhengzhou Xinghuo Intelligent Technology Co., Ltd. stands at the forefront of innovation in the industry by embracing a suite of cutting-edge management models. Incorporating renowned practices such as SAP, JIT, TQM, and TPM, our company has earned prestigious certifications including IS09001, ISO14001, CCC, and ISO/TS16949. The specialized vehicle production line we employ is unrivaled across China, merging streamlined efficiency with unique, patented non-standard equipment and fixtures. This sophisticated integration ensures meticulous control over production efficiency and process quality at every stage. Our commitment to excellence in advanced management has resulted in the creation of superior-quality products, garnering accolades and trust from the market and our valued clients.
Cooperation Mode 1. We offer comprehensive solutions with our supply of complete concrete mixer trucks, whether you require a domestic or international chassis option.
2. Enhance your operations with our supply of premium-quality concrete mixer upper structure components or spare parts, tailored for optimal performance.
3. Optimize your production with our CKD (Completely Knocked Down) components, perfect for efficient assembly and welding in your overseas workshops.
4. Leverage our expertise with our technical design and consulting services, crafted to elevate the capabilities and efficiency of your concrete mixer trucks.
