Servo Motor 18.9L PC 5 Gallon Barrel Injection Hollow Molding Production System Based on The Shape

Product Description

Product Description

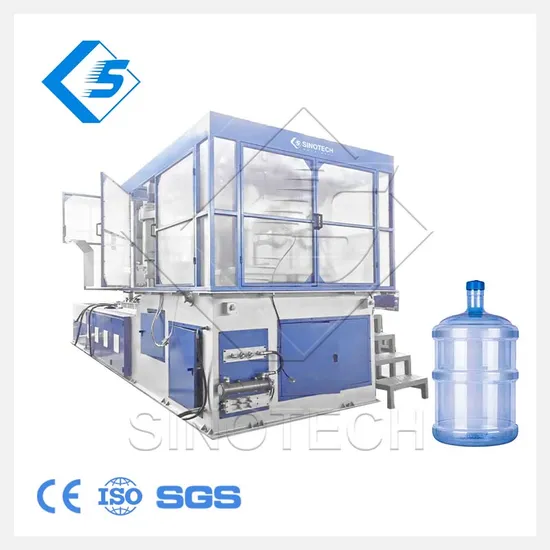

STISB-650PC series automatic high speed injection-blowing hollow molding machines are especially suitable for blowing and moulding PC 5gallon pure water bucket raw material with a production capacity of 70 molds/hour (empty cycle).
Main Features
*The whole process including mould injection stretch blowing and off-molding can be finished within one step,which means more energy efficiency and high quality for product.The injection blowing molding products are thinner and better uniformity than old style ones,which can save 50% materials.Meanwhile hyaienic reguirement is guaranteed.*Compact structure cover small floor coverage which can save more cost than traditional machines.*Widely used for manufacturing bottles for pharmaceutical healthcare,food beverages cosmetics lamp shade and other applications.*Can use recycling material with the lowest cost
Product Parameters

Technical Specification	Unit	STISB-650PC series
Maximum product volume	L	18.9 (Based on the shape of the product)
Extrusion system
Screw diameter	mm	75
Screw length to diameter ratio		22:1
Screw speed	rev/min	10~80
Plasticizing ability	kg / h	80
Number of heating sections of barrel		4
Barrel heating power	KW	20
Clamping device
Effective plane size of template	mm	860 x 610 (width*height)
Template spacing	mm	250~800
Clamping force	KN	650
Hydraulic system
Servo pump power	KW	45WL*3
Air pressure	Mpa	1.2
Work pressure	Mpa	10
Air consumption	m³/min	0.8
Electrical control system
Water supply pressure	Mpa	0.3-0.5
Voltage	V	AC380V±10%
Frequency	HZ	50
Wire system		Three-phase four-wire system
Total rated power	KW	120
Average energy consumption	KW/h	50
Machine weight	ton	20

Detailed Photos
Extrusion system:this system adopts imported automatic temperature control device, screw hydraulic motor drive + double cylinder injection mode.
Clamping device:the hydraulic fixed type non pull rod mold opening and closing mechanism has the advantages of fast speed, convenient demoulding and good stability
Hydraulic system:the whole hydraulic system adopts imported components and full servo flow control.
Electronic control system:this system adopts Japanese programmable controller, all adopts world famous brand electrical components
Remove molding disadvantage factor, least molding step
Single step improves accuracy,optimizes working procedure Putting away complicated, making a way to produce a reliable product and save energy as well. PET material in each procedure malfunctionreject rate is 1%
Compare with One-step and Two-step:

Molding	Process	Structure	Manpower/Energy/Space	Product Quality
One-step	From preform to product	One machine	Little	Not affect by damp and less pollution; Various kinds of shape
Two-step	Injection and blow molding are two separated process	1.Injection molding machine 2.Preform transiting machine 3.Reheating, stretch and off-moulding machine	More	Easy affect by damp and polluted; Singleness shape

Final Product
