Round Pipe/Rectangular Tube/Square Pipe Mill Production Line

Product Description

Product Description
ERW Welded Tube Mill
ERW welded tube mill is designed to roll steel strips continuously to produce straight seam welded tubes or pipes which is used to produce structure pipes of circular, square and rectangular tube such as threading pipe, scaffold pipe, bicycle tube, fitness equipment pipe, pile pipe in highway, low and medium pressure fluid pipe such as water pipe, heating pipe etc, as well as automobile tube, boiling pipe, roller carrier pipe etc high precision welded pipe.
The production flow of ERW welded tube mill :
Steel coils -- Coil loading -- Uncoiler --Shear & Welder -- storing accumulator -- forming -- HF welding -- Burr removing -- Polishing -- Cooling -- Sizing -- Rough straightening -- flying cutting saw -- Inspecting & Collecting -- Packaging -- Storing
The shear& welder is used for the shearing of the irregular parts in the head and the tail of the two belt coil, and the fulfilling out of butt welding . Using pneumatic (or hydraulic)shearing, with semi-auto argon arc welding.
There mechanical double-cone uncoiler and pneumatic double-cone uncoiler , also hydraulic single cone uncoiler and hydraulic double-cone uncoiler also available in our factory. The ERW pipe mill uncoiler is used for the alternative feeding of steel strip. Using double-station mechanical or hydraulic tensioning, with 360°rotary, while one cone online and the other standby.
For material storage, we also have professional devices for this function. In order to realize the function of storing a certain steel strip to supply the main forming & sizing pipe mill and ensure the continuous steel pipe production. We developed many kinds of storage device , like cage type storage, horizontal spiral accumulator, landing spiral accumulator etc .
Product Application

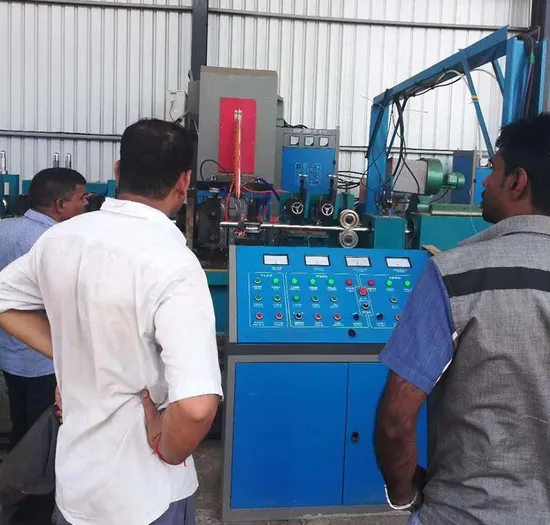

Detailed Photos
Main technical parameters of steel pipe tube mill ERW32-ERW114 :

	ERW32	ERW50	ERW60	ERW76	ERW89	ERW114
Diameter range(mm)	φ12-32	Φ21-50	Φ21-60	Φ21-76	Φ32-89	Φ48-114
Wall thickness(mm)	0.5-2.5	0.6-3.5	0.8-3.5	1.0-3.75	1.0-4.0	1.5-5.0
Steel material	σb≤580Mpa σs ≤400Mpa carbon steel and low alloy steel
Main motor power	75KW	90KW	110KW	160KW	185KW	200KW
Speed(m/min)	60-120	60-120	60-110	50-95	30-85	30-80
HF welder power	150KW	200KW	200KW	300KW	400KW	400KW
Equipment configuration	Uncoiler , shear & butt welder, accumulator, forming& sizing machine,flying cutting saw, end facing machine,automatic packing machine, storage.

Packaging & Shipping

FAQ
1. Are you manufacturer ?
Yes, we are manufacturer and trading company. We have our own technical team, and about 45000 sq.m workshop. Welcome to visit us.
2. What kind of information you need before you give quotation?
The pipe diameter and thickness range which you gonna make or the profile drawings, material information, and your other special requirements.
3. What kind of payment terms you can do ?
We are flexible about payment terms,such as T/T, L/C. By T/T (35% prepayment for confirming the order, 65% balance payment paid off before delivery) or by Irrevocable L/C at sight.We can help you on financing also,please contact us for details.
4. Can your factory customize the machine for clients ?
Yes, we can.
5. How do you do QA?
We have team do strict QA.
(1) Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.
(2) Every shaft will be inspected for the centering jumpiness.
(3) Every roller will be checked to make sure its tolerance, critical parts will be inspected for all dimensions.
6. What is the warranty time for your ERW pipe machine?
Warranty period of ERW pipe mill: 12 months after commissioning.
7. How about after-sales service ?
We will send professional engineers to final customer's factory for machine installation, commissioning and carefully working training. The final customer will afford related cost.
8. Why should i choose you? What's the difference between you and other Chinese supplier?
We are concentrating on this pipe mill field for more than 15 years. We have professional researching, designing, processing, testing and after-sales service teams. Our pipe making machine lines have been exported to many countries, such as Turkey, Russia, Egypt, Vietnam etc.
9. What should i do if i just start a new business ?
Contact us immediately, we can provide pre-sales consultant service free of charge.
