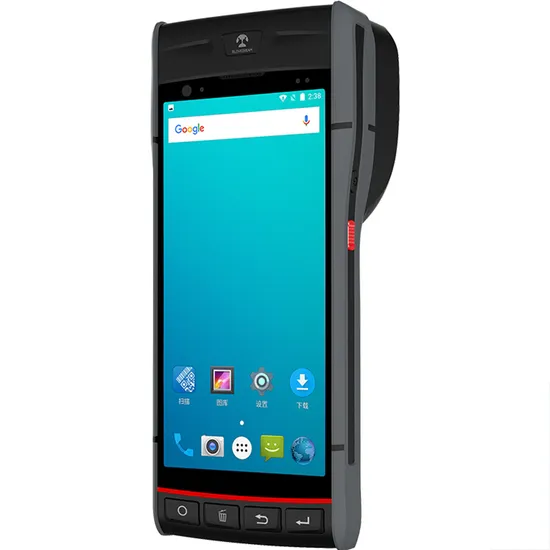

Industrial Portable Handheld Mobile Android Barcode Scanner Terminal with Thermal Printer

Product Description

1) Default Configuration: Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store 2) 1D, 2D, NFC (13.56MHZ), thermal printer SUPPORT LABLE STICKER, OTG, Cradle For Option; 3) Compact And Portable Ergonomic Design With Wrist Strap 4) Safedroid OS (Android 8.0) Highly Optimized Android Operating System. 5) Front Camera is 2MP colorful camera while rear camera 13MP HD camera 6) High Capacity 5600mAh Large Capacity Battery For Critical Requirements; 7) Pogo Pin Interface For Convenient Charging With Optional Charge Cradle. 8) Industrial Rugged Design, Water-Proof And Protection Grade (IP66); 9)About Shipment: We offer DHL shipping usually, but in emergency, we can choose another shipping option. Normally : DHL shipment: USA, Britain, Germany, Italy, Belgium, France, Spain and so on, EMS shipment :Russia, Saudi Arabia, Brazil and so on. After your confirm the CI and shipment ways , we will start to arrange the shipment.
If you wanta buy sample for testing or questions, please contact me :

Judy

Structural Parameter
Dimensions	Dimensions 177mm×72mm×(23.7-48.8)mm
Weight	<500g
Display Screen	5.5 inch IPS color display with resolution 720*1440
Expand Port	SIM card, micro SD (TF) Card
Communication Interface	Type-C USB
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input,Function key×4
Battery Capacity	Rechargeable polymer battery (3.8V 4200mAh) removable
Frequency	8ohm 1W speaker
Key	Silicone button
Performance Parameter
OS	Android 8.1, 9.0
CPU	Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor
RAM	2G/3G/4G RAM
Flash ROM	Standard 16G/32G/64G NAND Flash Storage
	micro SD/TF port (Max up to 128G)
Data Communication
WI-FI	Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol
FDD/TDD-LTE 4G	FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
WCDMA 3G	WCDMA(850/900/1900/2100MHz)
GSM 2G	GSM(850/900/1800/1900MHz
Bluetooth	Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters
Standard Modules
Rear camera	13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Front camera	2MP color camera
GNSS	Support GPS, Galileo, Glonass, Beidou
Operating Environment
Operating	-20°C to 55°C
Storage Temperature	-40°C to 70°C
Environment Humidity	5%RH-95%RH(no condensation)
Drop Specifications	6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature
Roll Specifications	500×0.5m rolling for 6 sides
Sealed Environment	IP66
2D CMOS (OPTIONAL)
CMOS Scanner	Honeywell N3601 Honeywell N6603
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
Thermal sticker printer
Printing speed	70mm/s
Print points	384 dots
Paper width	58mm
Paper diameter	35mm
Paper type	Support for Sticker / label Black mark printing
NFC Reader (Optional)
Frequency	13.56MHz
Protocol	Support ISO14443A/B, 15693 agreement
Range	2-5cm

---------------------------------------------------------------------- HONEYWELL N3680 Barcode type:
Codabar, Code 11, Code 128,
Code 2 of 5, Code 39, Code 93 and
93i, EAN/JAN-13, EAN/JAN 8, IATA
Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI,
GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13
with Extended coupon Code, Coupon GS1 Code
32(PARAF), EAN-UCC Emulation, GS1 Data bar
Matrix: Aztec Code, Data Matrix, MaxiCode,
QR Code, Chinese Sensible(Han Xin) code

HONEYWELL N6603 Barcode type :
Codabar, Codablock F, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, EAN/JAN-
13, EAN/JAN 8, EAN-UCC Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of
5, MSI, Postal Codes (Australian Post, British Post, Canadian Post, China Post,
Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet), Plessey Code, PosiCode, RSS
Expanded, RSS Limited, RSS-14, TCIF Linked Code 39, Telepen, Trioptic Code, UPC-A, UPC E
Aztec Code,MaxiCode, MicroPDF417,QR Code,PDF417,Data Matrix,
High-speed operation performance:
With androd 7.0 operating system, matching 64 bit quad core 1.3GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 1D and 2D barcode scanning,NFC(optional).
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.0 inch IPS (720x1280) Work even with water or Gloves.
Abundant means of data transportation(option)
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Postposition 8 mega pixel autofocus camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.

FAQ:
1. Are you factory or trading company? We are factory.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T, western Union, paypal, L/C etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment
6. warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7. Shipping: by sea, by air, or express
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in more cheap price.
11: Can buyers decide the express company that wil be used?
Yes. Buyers can choose the express company they prefer or cooperated with.
12: Can Buyers use their own couriers or shipping agents?
Yes, buyers can use their own shipping agents.
13: Do I need to pay taxes when receive the samples?
It depends on invoice value and the customs policy of the destination country. Generally taxes will occur.
14: What's the lead time? (How long do you need to prepare my goods?
4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
