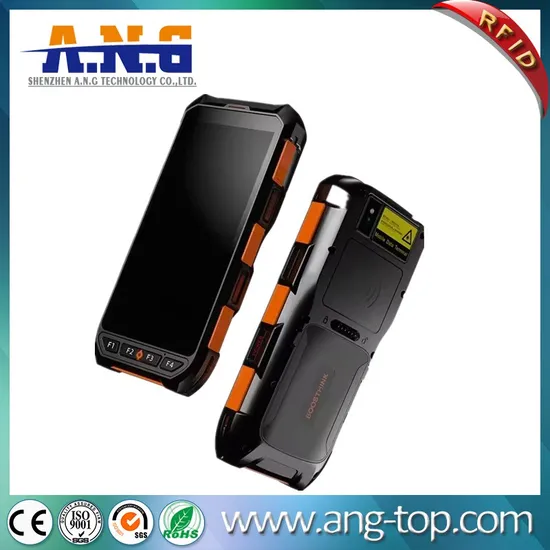

Android10 Rugged RFID Scanner PDA 134.2kHz Fdx-B/Hdx RFID Reader Writer ISO 11784/11785 Microchip Handheld Reader for Pig Cattle Sheep Management
| US$200.00-250.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
C6200
OS
Android
Memory Capacity
64GB
Applications
Industrial Grade PDA
CPU Type
Cortex-A73 2.0GHz Octa-Core
Internet Connection
WI-FI
Classification
Radio Frequency Identification
Weight
400g
Drop Specifications
5FT./1.5 M Drop
Sealing
IP65
Resolution
Rear 13 Megapixel, Front 5.0 Megapixel
Storage
4GB RAM/64GB ROM
Transport Package
1PC Per Box
Specification
170mm(H)x81mm(W)x28mm(D)± 2 mm
Trademark
ANG
Origin
Guangdong, China
HS Code
8471609000
Production Capacity
50, 000PCS Per Month
Product Description
Android10 Rugged RFID Scanner PDA 134.2khz FDX-B/HDX RFID Reader Writer ISO 11784/11785 Microchip Handheld Reader for Pig Cattle Sheep Management| PHYSICAL CHARACTERISTICS | ||||
| Dimension | 170mm(H)x81mm(W)x28mm(D)±2 mm | |||
| Weight | 400g | |||
| Display | Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight | |||
| Backlight | LED backlight | |||
| Expansions | 2 PSAM, 2 SIM, 1 TF | |||
| Battery | Rechargeable li-ion polymer, 3.8V, 5200mAh | |||
| PERFORMANCE CHARACTERSTICS | ||||
| CPU | Cortex-A73 2.0GHz octa-core | |||
| Operating System | Android 13 | |||
| Storage | 4GB RAM/64GB ROM, MicroSD(max 256GB expansion) | |||
| USER ENVIRONMENT | ||||
| Operating Temp. | -20ºC to 50ºC | |||
| Storage Temp | 20ºC to 70ºC | |||
| Humidity | 5%RH to 95%RH(non-condensing) | |||
| Drop Specifications | 5ft./1.5 m drop to concrete across the operatng temperature range | |||
| Sealing | IP65, IEC compliance | |||
| ESD | ±15kv air discharge, ±8kv direct discharge | |||
| DEVELOPMENT ENVIRONMENT | ||||
| SDK | Handheld-Wireless Software Development Kit | |||
| Language | Java | |||
| Environment | Android Studio or Eclipse | |||
| DATA COMMUNICATION | ||||
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); | |||
| WLAN | 2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac | |||
| WPAN | Bluetooth-v2.1+EDR, Bluetooth-v3.0+HS, Bluetooth-v4.2 | |||
| GPS | GPS(embedded A-GPS), BeiDou, GLONASS, accuracy of 5 m | |||
| DATA CAPTUER | ||||
| BARCODE READER(OPTIONAL) | ||||
| 2D Barcode | 2D CMOS Imager | Honeywell5703/ Newland NLS-CM60 etc. | ||
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | |||
| Remark: Support international standard 1D/2D barcode; Support barcode displayed on screen | ||||
| COLOR CAMERA | ||||
| Resolution | Rear 13 megapixel, front 5.0 megapixel | |||
| Lens | Auto-focus with LED flash | |||
| RFID READER(OPTIONAL) | ||||
| RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) | ||
| Protocol | ISO 11784&11785 | |||
| RFID HF/NFC | Frequency | 13.56MHz | ||
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 | |||
| R/W Range | 3cm to 5cm | |||
| RFID UHF | Frequency | 865~868MHz /902~928MHz/920~925MHz | ||
| Protocol | EPC C1 GEN2/ISO 18000-6C | |||
| Antenna Gain | Circular antenna(2dBi) | |||
| R/W Range | 0-2m(depend on tags and environment) | |||
| FINGERPRINT READER(OPTIONAL) | ||||
| Sensor | TCS1/FBI | |||
| Sensor type | Capacitive, area sensor | |||
| Resolution | 500 DPI | |||
| Performance | FRR<0.008%, FAR<0.005% | |||
| Capacity | 1000 | |||
| PSAM SECURITY(OPTIONAL) | ||||
| Protocol | ISO 7816 | |||
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | |||
| Slot | 2 slots(maximum) | |||
| ACCESSORIES | ||||
| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable | |||
| Optional | Cradle,storage bag | |||
