Single Screw Plastic Extruder for Recycling

Product Description

Product Description
Greenlandplast Plastic Recycling Granulating Machine Recycled Plastic Granules Making Machine Recycled Plastic Granulator This plastic pelletizing machine is designed by Zhangjiagang Greenlandplast Machinery Co., Ltd for the recycling and granulating/pelletizing of clean and dry waste plastic. It is equipped with different feeding methods and cutting methods, and can also be used for pelletizing film scraps materials when a forced feeding system is installed.
The machine is suitable for recycling and pelletizing various types and properties of materials, including PE, PP, ABS, PS, PC, PA, PVC, and more. It effectively processes crushed granules and plastic flakes into high-quality recycled plastic granules.
Key Features:
Fast and stable feeding with a specially designed screw feeder or belt conveyor
Wear resistance for long-lasting performance
Natural exhaust holes and vacuum system to drain water inside the material
Durable extruder with cast aluminum or ceramic heater
Automatic hydraulic screen changing system for cleaner and higher quality particles
Available Materials: PE, PP, PS, ABS, PC, etc., crushed granules and plastic flakes
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100	100	25-33:1	55kw	150-200kgh
GLP120	120	25-33:1	90/kw	250-350kgh
GLP140	140	25-33:1	132kw	400-500kgh
GLP160	160	25-33:1	160kw	550-650kgh
GLP180	180	25-33:1	185kw	650-800kgh
GLP200	200	25-33:1	250kw	800-1000kgh

Detailed Photos
Product Description

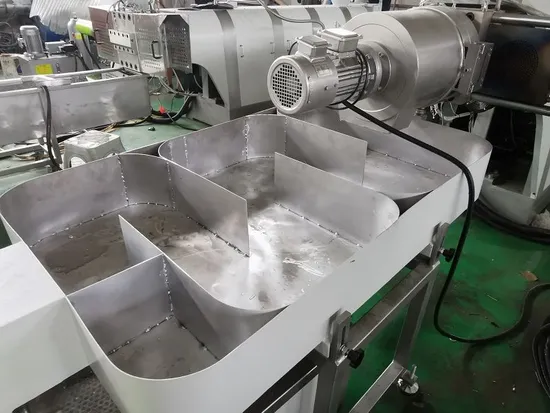

Loading System The loading system of our extrusion machine, manufactured by Zhangjiagang Greenlandplast Machinery Co., Ltd, is designed to efficiently feed materials into the extrusion system. It offers two options for material feeding: a screw feeder or a belt conveyor.
The screw feeder is a reliable and precise method of feeding materials into the extrusion system. It ensures a consistent and controlled flow of materials, allowing for optimal extrusion performance.
Alternatively, the belt conveyor option provides a convenient and efficient way to transport materials to the extrusion system. As an optional feature, the belt conveyor can be equipped with a metal detector, enhancing the overall safety and quality control of the extrusion process.
With our loading system, you can trust that your materials will be seamlessly and accurately fed into the extrusion system, ensuring smooth and efficient production.

Quantitative Feeding System
The feeding speed is controlled by an inverter, allowing for adaptation to different material properties and ensuring stable operation of the extruder.
The feeding system is equipped with a sensor device that synchronizes with the loading system, enabling intelligent automatic feeding. It stops feeding when the material is full and automatically loads when the material is not full.
For more information, please visit Zhangjiagang Greenlandplast Machinery Co., Ltd.
Extrusion System
Extrusion System The extrusion system by Zhangjiagang Greenlandplast Machinery Co., Ltd is specifically designed for plastic recycling pelletizing. The screw barrel is made of 38CrMoAl material with nitrided treatment, ensuring durability and longevity. The surface of the screw is sprayed with an alloy wear-resistant layer, further enhancing its performance.
The barrel is equipped with an exhaust section and the extruder features a vacuum exhaust system. This system offers numerous advantages including high output, excellent dehydration and exhaust effect, and exceptional wear resistance.
The heating system of the extrusion system utilizes either cast aluminum heaters or ceramic heaters. Each heating zone has an independent intelligent temperature control system and is equipped with forced air cooling. This allows for convenient and accurate temperature control, resulting in superior pellet quality.

Screen Change Filter System The screen change filter system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to enhance the quality of pellets by filtering out small impurities in the material. It utilizes a plate-type hydraulic automatic screen changer that effectively removes impurities and improves the overall quality of the pellets. The system is equipped with an automatic pressure alarm device, ensuring efficient operation and preventing any potential issues.
For customers with specific requirements, we also offer the option to equip the system with a column hydraulic screen changer or a non-net screen changer. These additional features further enhance the filtering effect and make the operation even more convenient.
Pelletizer Cutting System Zhangjiagang Greenlandplast Machinery Co., Ltd offers a high-quality waste plastic recycling pelletizing/granulator with our advanced pelletizing system. Our system ensures a smooth and beautiful pelletizing effect, making it easy to operate and saving labor.
For materials with special properties or based on customer preferences, we provide additional options to enhance the pelletizing process. These options include water-stretching and pelletizing, automatic strand-stretching and pelletizing, or underwater pelletizing systems.
Vibration & Blower Drying System The Vibration & Blower Drying System by Zhangjiagang Greenlandplast Machinery Co., Ltd is a cutting-edge solution for efficient dewatering and drying of particles. This innovative method combines vibration dewatering with a powerful dewatering fan, resulting in exceptional performance and numerous benefits.
Power Saving: The Vibration & Blower Drying System is designed to minimize power consumption, making it an energy-efficient choice for your drying needs.
Low Noise: With advanced technology and precision engineering, this system operates with reduced noise levels, ensuring a quieter working environment.
Excellent Dewatering: The combination of vibration and the dewatering fan enables efficient removal of moisture from particles, resulting in superior dewatering performance.
Effective Drying: Not only does this system remove moisture, but it also provides excellent drying results, ensuring your particles are thoroughly dried and ready for further processing.
Invest in the Vibration & Blower Drying System by Zhangjiagang Greenlandplast Machinery Co., Ltd and experience the benefits of its power-saving design, low noise operation, and exceptional particle dewatering and drying capabilities.
Cutting & Vibrator & Hopper Storage The Cutting & Vibrator & Hopper Storage system by Zhangjiagang Greenlandplast Machinery Co., Ltd is designed to efficiently transfer pellets to the storage tank. Made of high-quality stainless steel, both the air conveyor pipe and the tank ensure durability and long-lasting performance. The pipe surface is equipped with sound-absorbing cotton, effectively reducing noise levels during operation.
