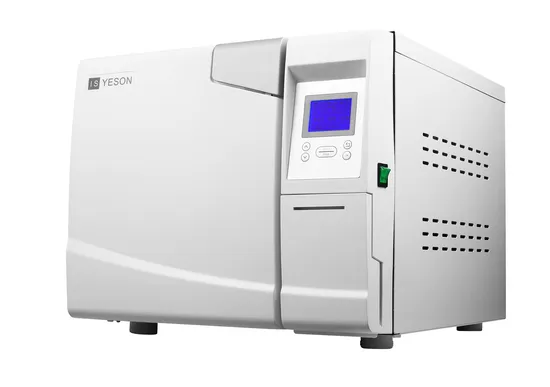

23L Class B Tabletop Steam Autoclave for Sterilization with LCD

Product Description

YESON Autoclave PRO Series 18L,Class B
A sterilizer NOT to annoy the dental doctors.
Features:
1) Automatic water filling & drainage
Reduce nurses' workload.
2) Post Drying Process
Ensure the instrument dry.
3) Compliance with European standards completely
4) Clean water tank and waste water tank are separated
5) Electronic + Mechanical locker system
6) Short circuit safety protection
7) Sterilization Effectiveness Assessment
8) Water quality detection (optional)
9) Printer + USB
TECHNICAL DATA

Power supply	230V/50Hz/2500W
Clean water tank	4.5L
Waste water tank	4.0L
Chamber size	ø250X450mm
Capacity	23L
Product size (Width*Depth*Height)	500X655X430mm
Net weight	55Kg
Gross weight	65Kg
Installation size	600mm
Material of chamber	Stainless steel 304

Parameters of the sterilizer

Process	Vacuum times	sterilizing time	Sterilizing temperature	Sterilizing pressure	Vacuum persist time	Dry time
121ºC/SOLID	1 *	20min *	121ºC	110kPa		3 *
121ºC/POROUS	3 *	20min *	121ºC	110kPa		7 *
121ºC/HOLLOW	3 *	20min *	121ºC	110kPa		10 *
134ºC/SOLID	1 *	4min *	134ºC	210kPa		3 *
134ºC/PROOUS	3 *	4min *	134ºC	210kPa		7 *
134ºC/HOLLOW	3 *	4min *	134ºC	210kPa		10 *
USER DEFINED	3 *	5min *	134ºC*	210kPa		10 *
B-D TEST	3	4min	134ºC	210kPa		7
VACUUM TEST				-80kPa	15min
CLEAN PROCESS	3	5min	105ºC	20kPa		10
PRIONEN	3	19min	135ºC	210kPa		10

The data have "*" can be adjusted
