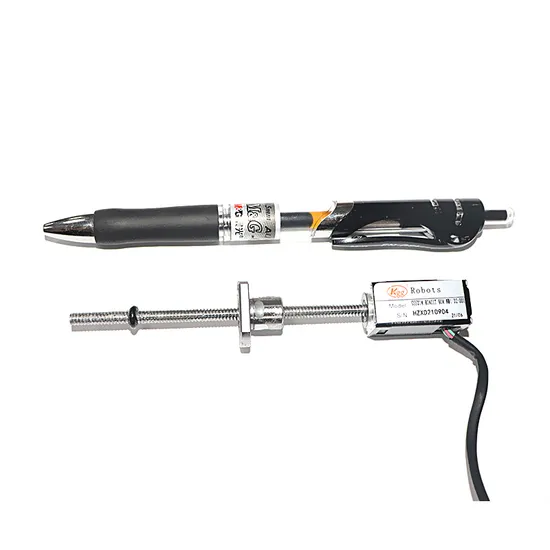

Kgg Low Noise Screw Stepper Motor for Milling Machines Gssd Series

Product Description

FEATURES OF SCREW MOTOR DIRECT CONNECTION
Transmission upgrade, simple structure
A 2-phase stepping motor is directly installed on the shaft end of the ball screw, and the ball screw axis is used as the ideal structure of the motor rotation axis.
Compact and compact
Two-phase stepping motor and rolled ball screw integrated product, through the integration of the motor shaft and the ball screw shaft, no coupling is needed, saving the size of the long side direction.
High precision, high stability, excellent cost performance
The combination of rolling ball screw and 2-phase stepping motor saves the coupling, and the integrated structure reduces the combined accuracy error, and can make the repeated positioning accuracy ± 0.001mm.
Multiple shaft ends can be customized
Provide a variety of shaft end shapes and stroke specifications, and non-standard products can be customized according to customer requirements.
Application: Medical industry,Lithium battery industry,Solar photovoltaic industry,Semi conductor Industry,General industry machinery,Machine tool,Parking system,High-speed rail and aviation transportation equipment,3C industry etc
Rich products, complete specifications
The motor specifications are 20, 28, 35, 42, 57 stepping motors, which can be matched with ball screws and resin sliding screws.
Motor Specification

Motor Frame Size	Motor Model	Rated Voltage (V)	Rated current (A)	Winding lmpedance (O)	Coefficient of Mutual lnduction (mH)	Maximum Static Torque (N.m)	Motor Specifications (mm)
20	8E2004	3.52	0.4	8.8	2.8	0.003	20
	8E2105	2.55	0.5	5.1	1.5	0.0036	27.2
28	11E2110	2.1	1	2.1	1.5	0.036	33.35
	11E2216	2.4	1.6	1.5	1.36	0.052	45
35	14E2110	3.5	1	3.5	3.6	0.06	33.6
	14E2215	4.05	1.5	2.7	3.2	0.1	45.6
42	17E2115	2.8	1.5	1.85	2.2	0.18	34.1
	17E2225	2.25	2.5	0.9	1.8	0.32	48.1
57	23E2110	6.4	1	6.4	1.65	0.7	45
	23E2225	5	2.5	2	5.2	1.5	65

Product Index

Motor Specifications	Model	Total Length of Motor	Rated current (A)	Maximum Static Torque (N.m)	Dia. (mm)	Lead (mm)	Reference Thrust (N)
20	GSSD20-R0401-M1	20	0.4	0.003	4	1	10
	GSSD20-R0401-M2	27.2	0.5	0.0035	4	1	15
	GSSD20-R0401K-M1	20	0.4	0.003	4	1	10
	GSSD20-R0401K-M2	27.2	0.5	0.0035	4	1	15
	GSSD20-R0402-M1	20	0.4	0.003	4	2	5
	GSSD20-R0402-M2	27.2	0.5	0.0035	4	2	7
28	GSSD28-R0504-M1	33.35	1	0.036	5	4	20
	GSSD28-R0504-M2	45	1.6	0.052	5	4	40
	GSSD28-R0504G-M1	33.35	1	0.036	5	4	20
	GSSD28-R0504G-M2	45	1.6	0.052	5	4	40
	GSSD28-R0601-M1	33.35	1	0.036	6	1	110
	GSSD28-R0601-M2	45	1.6	0.052	6	1	150
	GSSD28-R0601K-M1	33.35	1	0.036	6	1	110
	GSSD28-R0601K-M2	45	1.6	0.052	6	1	150
	GSSD28-R0602-M1	33.35	1	0.036	6	2	50
	GSSD28-R0602-M2	45	1.6	0.052	6	2	12
	GSSD28-R0602G-M1	33.35	1	0.036	6	2	50
	GSSD28-R0602G-M2	45	1.6	0.052	6	2	150
	GSSD28-R0606-M1	33.35	1	0.036	6	6	18
	GSSD28-R0606-M2	45	1.6	0.052	6	6	35
	GSSD28-R0610-M1	33.35	1	0.036	6	10	10
	GSSD28-R0610-M2	45	1.6	0.052	6	10	15
35	GSSD35-R0801-M1	33.6	1	0.06	8	1	175
	GSSD35-R0801-M2	45.6	1.5	1	8	1	230
	GSSD35-R0801K-M1	33.6	1	0.06	8	1	175
	GSSD35-R0801K-M2	45.6	1.5	1	8	1	230
	GSSD35-R0802-M1	33.6	1	0.06	8	2	85
	GSSD35-R0802-M2	45.6	1.5	1	8	2	160
	GSSD35-R0805-M1	33.6	1	0.06	8	5	35
	GSSD35-R0805-M2	45.6	1.5	1	8	5	65
	GSSD35-R0810-M1	33.6	1	0.06	8	10	15
	GSSD35-R0810-M2	45.6	1.5	1	8	10	30
42	GSSD42-R1002-M1	34.1	1.5	0.18	10	2	184
	GSSD42-R1002-M2	48.1	2.5	0.32	10	2	306
	GSSD42-R1002K-M1	34.1	1.5	0.18	10	2	184
	GSSD42-R1002K-M2	48.1	2.5	0.32	10	2	306
	GSSD42-R1005-M1	34.1	1.5	0.18	10	5	75
	GSSD42-R1005-M2	48.1	2.5	0.32	10	5	15
	GSSD42-R1010-M1	34.1	1.5	0.18	10	10	40
	GSSD42-R1010-M2	48.1	2.5	0.32	10	10	83
	GSSD42-R1015-M1	34.1	1.5	0.18	10	15	27
	GSSD42-R1015-M2	48.1	2.5	0.32	10	15	50
	GSSD42-R1020-M1	34.1	1.5	0.18	10	20	22
	GSSD42-R1020-M2	48.1	2.5	0.32	10	20	41

Technical Drawing
Specification List
FACTORY DETAILED PROCESSING PHOTOS
HIGH QUALITY CONTROL SYSTEM
FAQ
1. Why choose KGG China? Over the past 14 years, KGG has always insisted that "products and services" start from Japanese industry standards,taking Taiwan standards as the bottom line, actively invest in the development of new transmission components and self-experiment and test. With the service tenet of "exceeding customer expectations", establish a "trusted" partnership. 2. What is your main products ? We are a leading manufacturer and distributor of linear motion components in China. Especially miniature size of Ball Screws and Linear Actuators and linear motion guideways. Our brand "KGG" stands for " Know-how," " Great Quality," and " Good value" and our factory is located in the most advanced city in China: Shanghai with the best equipment and sophisticated technology, completely strict quality control system. Our aim is to supply world leader class linear motion components but with most reasonable price in the world.
3. How to Custom-made (OEM/ODM)? If you have a product drawing or a sample, please send to us, and we can custom-made the as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance. 4. When can I get the quotation? We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority. 5. How can I get a sample to check the quality? After confirmation of our quoted price, you can place the sample order. The sample will be started after you sign back our detailed technical file. 6. What's your payment terms? Our payment terms is 30% deposit,balance 70% before shipment.
