Universal Pressure Transmitter for Booster Pumps and Air Compressors PCM390

Product Description

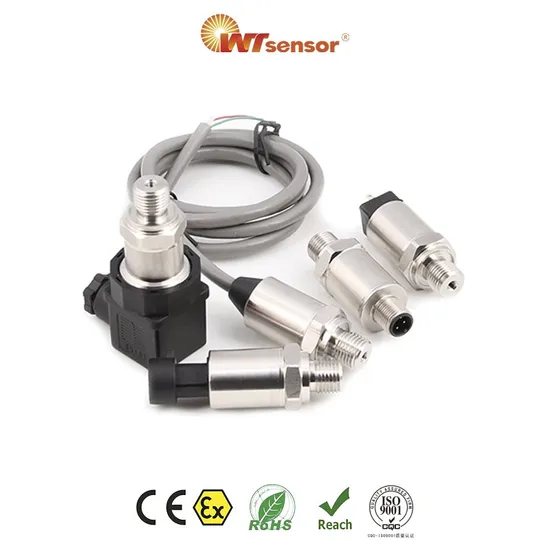

PCM390 Universal Pressure Transmitter
Product overview
PCM390 is also applicable to a wide range of industrial applications, with a variety of structures, output forms and pressure connections to meet the requirements of most applications. It is designed with compact structure which especially applies to the installation in small space.
Features
Pressure Reference:Gauge pressure, Absolute pressure, Sealed gauge pressure
Pressure Range:0~35kPa…25MPa
Accuracy:±0.5%FS(typ.); ±1%FS(max.)
Power Supply:12~30VDC,5VDC
Thread:Can customized
Electrical Connection:Can customized
Applications
Hydraulic and pneumatic equipment
Chemicals and Chemical Industry
Compressor
Inkjet printer
Product Parameters

Performance parameters
Pressure range	0~35kPa…25MPa
Pressure reference	Gauge pressure, Absolute pressure, Sealed gauge pressure
Accuracy	±0.5%FS(typ.); ±1%FS(max.)
Hysteresis & repeatability	≤±0.1%FS
Temp. drift	≤±1.5%FS(-20ºC~85ºC)
Response time	<10ms
Service life	≥10×106 pressure cycles
Ambient temp.	-20ºC~80ºC
Medium temp.	-30ºC~105ºC
Storage temp.	-40ºC~120ºC
EMC-interference	IEC 61000-6-3
EMC-immunity	IEC 61000-6-2
Insulation resistance	≥100MΩ/500VDC(200MΩ/250VDC)
Vibration resistance	Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6
	Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64
Shock resistance	Shock: 100g/11ms;IEC 60068-2-27
	Free fall: 1m; IEC 60068-2-32
Protection	IP65
Material	Diaphragm and sensor inside (AISI316L)
	Housing and pressure port: (AISI304)
	Electrical connection: PA66
Net weight	50g~90g
Size of hexagon	HEX22

Supply & output
Code	B1	B7	B6
Output	4~20mA	0~10V	0.5~4.5V R/M
Supply	12~30VDC	12~30VDC	5VDC

Pressure range selection
Pressure range code	Pressure reference	Pressure range	Overpressure	Burst pressure	Remark
35K	G	0~35kPa	300%FS	600%FS
70K	G	0~70kPa	300%FS	600%FS
100kC	G,A	0~100kPa	200%FS	500%FS
160kC	G	0~160kPa	200%FS	500%FS
250kC	G,A	0~250kPa	200%FS	500%FS
400kC	G	0~400kPa	200%FS	500%FS
600kC	G	0~600kPa	200%FS	500%FS
1MC	G	0~1MPa	200%FS	500%FS
1.6MC	G,S	0~1.6MPa	200%FS	500%FS
2.5MC	S	0~2.5MPa	200%FS	500%FS
4MC	S	0~4MPa	200%FS	400%FS
6MC	S	0~6MPa	200%FS	300%FS
10M	S	0~10MPa	200%FS	300%FS
16M	S	0~16MPa	150%FS	200%FS
25M	S	0~25MPa	150%FS	200%FS

Note: (1)G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure. (2)"1"is non-glass header, please note.
Example: PCM390-70kGB1C3J3
Refer to product model PCM390, pressure range 0~70kPa, pressure reference gauge pressure, output signal 4~20mA, pressure port G1/4, electrical connection cable outlet.
Ordering tips:
Ensure compatibility between measured media and contacting part of product when placing an order.
