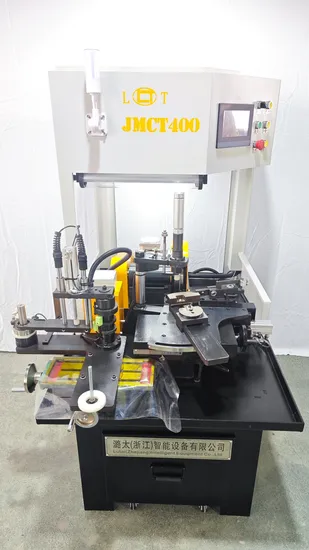

Precision Mechanical Arm Grinding Machine for Accurate Grooves
Basic Info.
Model NO.
JMCT400
Type
Special Purpose Grinding Machine
Processing Object
Saw
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Saw Groove
Precision
High Precision
Condition
New
Blade Diameter
Ø110~Ø400mm
Range of Tooth Pitch
7~50mm
Applicable Tooth Thickness
≤3.5mm
Grinding Wheel Specifications
Ø255×Ø25.4×2.5mm
Grinding Wheel Stroke
0~25mm
Work Frequency
40~60t/Min
Working Air Pressure
≥0.45MPa
Supply Voltage
AC380V 50Hz
Power
2.5kw
Weight
600kg
Machine Tool Dimensions
1050×1300×1700mm
Transport Package
Wooden Box
Specification
400mm
Trademark
Lutai
Origin
China
Packaging & Delivery
Package Size
113.00cm * 138.00cm * 180.00cm
Package Gross Weight
630.000kg
Product Description
Machine features1.This machine is a specialized automated equipment for grinding the welding tooth table of alloy circular saw blades.
2.The use of manipulator up and down saw blade, simple and convenient operation, one person can operate multiple equipment.
3.The stroke is powered by a servo motor and a linear guide rail, which can accurately control the grinding depth.
4.Gear steering adjustment using the line rail, the adjusting machine to the knife more silky smooth.
5.Can process special tooth shapes such as hump teeth.
