High Precision Laundry Frame Plastic Mold Twin Tub Washer Plastic Injection Mould

Product Description

Product Description
Located in Qingdao, Hiparter has more than 20 years experience in designing and manufacturing plastic washer injection mould, and we have a variety of die manufacturing process capabilities. Qingdao is China's home appliance base, with Haier, Hisense, Aucma and other world-famous local home appliance brands. With this advantage, we have produced almost all plastic moulds for all home appliances. At the same time, we are also proficient in the development and manufacturing of stamping die for home appliances, even casting mould. Here you can experience a one-station mould service to meet your various needs.

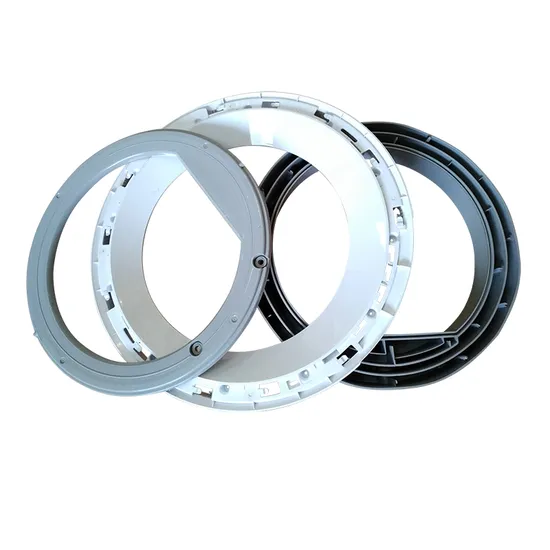

We can design and manufacture all kinds of washer plastic injection mould, including washer flange, frame, panels, drum and top plate etc.
Washer Plastic Injection Mould Specification
Part Material: PC/ABSCore &Cavity Steel: P20/H13//GS2344/NAK80/ASSAB718H/ASSAB8407Mold Base Steel: P20/1050/S50C/Runner: Hot or ColdCavity No: Single or MultipleMold Base Standard: DME/LKM/HASCO/Etc.Spare Parts Standard: DME/HASCO/DAIDO/MISUMI/ETC.Mold Life: 30k-1,000 kCycle Time: 10-120 sLead Time: 30-45 daysInjection Machine: 450-1300 Ton
Product Parameters

Product Name	High Precision Laundry Frame Plastic Mold Twin Tub Washer Plastic Injection Mould
Product Material	PP/PE/PS/PC/PU/PLA/SILICONE/PMMA/ABS/POM/PA
Mould Material	P20/718/NAK80/S136/2738/H13/S304
Gate type	edge gate, J-gate, side gate, sub-gate(cashew gate, subsurface gate, submarine gate, subgate to pin) tunnel gate onto feeder post, pin gate, sprue gate, direct gate, tab gate
Quality Assurance	ISO9001
Mould Life	More than 500, 000shots
Ejector System	Ejector pin
File Format	2D/3D
Injection Mould Machine	160-1600T
Equipments	Coordinate Measure Machine, 3D Scanner(GOM German)OMM projector longside hand-tool measure
Delivery	Customer-specified
Mould Manufacturing Factory	more than 2000 square meters
Fast mold design:	We can be within 1-3 working days after getting customer's drawings.
Minimum order:	Small orders can be accepted.
Mold making service	OEM/ODM service is available.
Mold packing	In strong wooden pallets to avoid any damages during long transportation.
Mould testing:	All of the moulds can be well tested before the shipments. Videos testing the moulds are available.
Specification	Depends on clients' requirements
Mold lead time	About 45 days after getting the mold design confirmation.
Application	Car, Household Appliances, Commodity, Electronic, Home Use, Hardware, Industrial
After-Sales Warranty	to Offer Suplementary for Destroied Parts
Color	Customised
Equipments	High speed CNC, Standard CNC, EDM, Wire Cutting, WEDM, Grinder, Plastic Injection Mould Machine for trial out mold from 50-3000T available.

Company Profile
"To do the most, to show the best"
Located in Qingdao, Shandong, with about 20 years development, Hiparter specializes in designing and making plastic injection mould, and reached a level where we can confidently and consistently follow the work of the plastic injection mould process. Our management system is ISO9001. Our toolings are not only manufactured fast and well, but also at an affordable price. There are rich experienced engineers and workers in factory, our quality assurance system tracks every aspect of the design and building process to guarantee the quality and delivery time of the mould. We have a unique business philosophy, rich production management experience, excellent technical team, for the development of design, manufacturing, after-sales service to provide a full guarantee.
Committed to mould design and manufacturing, Hiparter is always willing to make friends with every customer.
Design Capacity
We adhere to total solution service: product design optimization→ mould design→ mould manufacturing →tooling debugging→ product inspection→ mould specification manual sharing→ after-sales support.
Diverse Design Resources
· Equipped with word-class CAD / CAM / CAE resources.
· Proficient in 2D/3D design, entity parting

Experienced Technology Engineers
· 60+employees in engineering design center
· 10+employees are engaged in CAE simulation.
· 40+designers are engaged in product design, process design and mould structure design.
· 10+design directors and technical directors have 10+ years of design experience
Variety of Mould Category
With more than 20 years of tool technology experience, Hiparter can develop and build all kinds of injection tool. Such as:
· Hot runner injection tool · Double-color tool
· Gas Assisted tool · RHCM Injection tool
· Insert tool · Overtooling
· Stack tool · Reverse tool
· IMD tool etc.
Technology Innovation: Our mould innovation concept is always dare to try new mould material, new technology, new processes.
Advanced Equipments
"a workman must firstly sharpen his tools if he want to do his work well" Advanced high precision equipments guarantee the high quality of the toolings. We have a full range of mould processing and manufacturing equipment, and almost all the machining process completed in-house. After manufacturing, we can test toolings on site directly, and all design and manufacturing engineers are present.
Our Manufacturing Capabilities

1. 40+ sets of toolings per month
2. Over 2m size for big tool
3. 125T-2500T injection tool machines more than 28 sets
4. 250T for 2K toolings, 750T for 3K toolings
5. Slow speed wire cutting machine and middle speed wire cutting machine more than 11 sets.
6. Fully equipped with grinder machine, milling machine, drilling machine, NC machining, wire cutting machine, etc.
7. We can guarantee the quality and lead time.

Main Machining Equipments
Name	Model	Main Parameter(Stroke:XYZ) (mm)	Brand&Made In	Qty.
Five-axis CNC Milling, High Speed	Compact B-2522	Stroke( X/Y/Z):2000/2500/1200mm; Rotating Speed:24000rpm;Dynamic Accuracy:0.005mm ;	KEN,Taiwan	1
Five-sided CNC Milling	H-2622	Stroke( X/Y/Z):2600x2300x1100 ; Accuracy:0.02mm	KAFO,Taiwan	1
CNC Milling, High Speed	H16M	Stroke( X/Y/Z):1600x1300x700mm; Work table size:1900x1300mm; Accuracy:0.01mm	TAKUMI,Taiwan	1
CNC Milling, High Speed	F8	Stroke( X/Y/Z): 1300x800x650mm Work table size:1550x800mm; Positioning Accuracy:0.0015mm	MAKINO,Japan	1
CNC Milling, High Speed	F5	Stroke( X/Y/Z): 900X500X350; Work table size:1000*500;Accuracy:0.005mm	MAKINO,Japan	1
CNC Milling, High Speed	MAKINO V33i	Stroke( X/Y/Z):650*450*350; Rotating speed:20000rev/min; Accuracy:0.002mm	MAKINO,Japan	1
CNC Milling, High Speed	FANUC A-D14MiB	Stroke( X/Y/Z):500x400x330; Spindle rotate speed:24000rev/min; Work table size:650x400; Accuracy:0.003mm	FANUC,Japan	2
3+2 Axis Deep Hole Drill	DHD-2520	Work table size:2500x2000mm; Accuracy:0.02mm	TEMY,China	1
Precision EDM (Mirror )	MAKINO EDGE3i	Stroke( X/Y/Z): 330x250x250mm; Accuracy:0.005/0.003mm;	MAKINO,Japan	1
Precision EDM	AL60GS	Stroke( X/Y/Z):600x420x370mm; Accuracy: 0.01mm	Sodick,Japan	1
Precision Wire-Cut	VL600Qs	Stroke( X/Y/Z):600x400x270 mm;	Sodick,Japan	1
Precision Wire-Cut	AQ360LXs	Stroke( X/Y/Z):360x250x250 mm;	Sodick,Japan	1
Precision Wire-Cut	V650G	Stroke( X/Y/Z):650x400x350 mm;	EXCETEK,Taiwan	1
Precision grinding machine	KGS-84AHD	Worktable size: 800x400mm; Max left&right movement:920mm Max moving dimension(front to back):450mm;	KENT,Taiwan	1

Our Advantages
There are not only injection toolings, but also stamping toolings and casting toolings. For a product, we can produce over 90% injection parts and stamping parts, and we can develop, manufacture, test toolings in our own factory to achieve one-station service.
1. Experienced design engineer:
Ensure the mould structure is reasonable. Guarantee success rate of first test, reduce the mould test times.
2. Advanced equipments:
Ensure the accuracy of the mould. Guarantee elaborate processing to achieve one-time machining in place.
3. Numerous equipments:
100+ equipments in the factory to ensure the processing schedule. Processed and tested directly in our own factory.
4. Quick reply:
Consultation service feedback within 24 hours.
5. Shift system:
3x8 turns working in the factory to ensure the processing progress, shorten mould time and make the mould delivered quickly.
6. Open management philosophy:
With innovative thinking, using new technology and new materials applied to the mould, so that our mould technology takes place in the front ranks of the world.
Export Capability
Our toolings have been approved and appraised by our customers. We offer prototype making and free image design for customer analyse.We also provide good after-sales service and enjoy a good reputation among customers both at home and abroad, including Haier, Hisense, AUCMA, Midea, SANYO, KIA. GM, etc.The products have been shipped all over the world including destinations in Europe, North America, South America, Japan, Korea, and so on, more than 30 countries.

Packaging & Shipping
Preparation Before Packaging
Painting is one of the necessary steps before we pack the mould, and we love the mould we produce as if it were our own child.
1.Benefits of painting
1) Form a protective layer with high strength, high hardness and high wear resistance, protect the surface of the mould from corrosion and wear.
2) Make the mould meet the aesthetic standard
3) Make you to identify the set of mould faster when using
2. Painting color: Choose the colors according to your requirements, such as black, green, yellow, blue etc.
3. Protect hot runner connector: Avoid collision and extrusion during transportation and using.

Painting	Convenient to identify your mould
Documents	All the details for this die,such as structure drawing, instruction of operation, maintenance manual, inspection report, factory checking list etc.
Vacuum Package	Convenient transportation, good sealing performance
Fastening	More stronger to aviod damage
Plywood Case	Outer packaging, exported standard

With rich experience in exporting, we can choose a reasonable packaging for you to reduce the shipping risk. Of course you can appoint the packaging according to your requirement. We can try our best to satisfy you.
· For Trial Samples Delivery:
Exstamping: DHL, FedEX,UPS, TNT, and so on
· For Mould Delivery: Domestic: By road, by air, or othersOverseas: By air, by sea
Time: By air around 2-5 days. By sea around 15-40 days.
FAQ
Q1: Are you a trading company or manufacturer ?
A: We are factory and located in Qingdao City, Shandong Provice, China.
Q2: What information is required for a quote?
A. Please provide us with product 2D or 3D drawing. If you don't have drawings on hand, samples are also available for checking cost.
Q3: Can I have my own design?
A: Yes, we are very capable to do customized design and make for you. Please share with your ideas, we will discuss your needs, purpose and objective thoroughly and work together with you for the whole project.
Q4: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection.
Q5: How long is your delivery time?
A: The lead time of T0 sample depends on the mould structure, and generally it takes 40-50 days from receipt of final drawings, deposit and mould design approval. Mass production delivery time depends on the order quantity.
Contact Us
Make friends with every customer, provide them with quality products, and create more value for our customers, which is our forever concept.
More accurate quotation, please send us 2D/3D drawings of your products to us.
