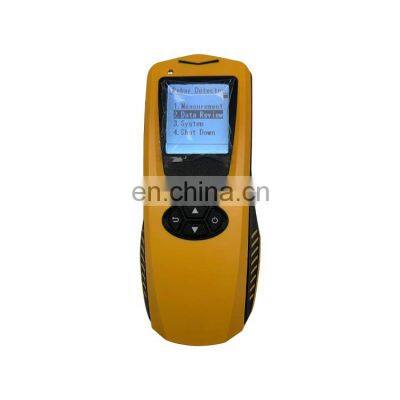

Portable Advanced Rebar Locator Rebar Scanner

Product Description

Product Description
Product Usage and FeaturesPortable Rebar Detector/ScannerPRODUCT OVERVIEW:The first generation portable rebar integrated detector uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology. series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts.The multiple coil structure design make it more accurate＆responsive and higher resolution.ParametersItemsTechnical Spec.Diameter Measuring Range（mm）Ф6～Ф50Measuring Range（mm）Location Range: 1～120First Range: 1～60Second Range: 30～120Thickness Measuring Accuracy（mm）1～40±141～60±261～80±381～100±5101～120±8Rebar Location Accuracy1～60±361-120±6Diameter Measuring ModesOptionalJGJ MeasurementOptionalData StorageOptionalOff TimeAutomaticPower SupplyRechargeable Lithium BatteryWorking Temperature-10℃～+42℃Size（mm）188×145×140Weight（kg）0.745Detailed ImagesFunctions:1. measure the diameter of the rebars on the concrete surface; measuring range: φ6~φ50mm2. measure the comcrete cover thickness; mesuring range:1~120mm3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.Company IntroductionCangzhou Lovely Technology Co.,Ltd. Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.Packing & DeliveryAfter Sales ServiceFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
