Factory Price Bimetal Thermometer 0-600º C Flue Gas Temperature Meter

Product Description

Factory price bimetal thermometer 0-600ºC flue gas temperature meter
Product Description

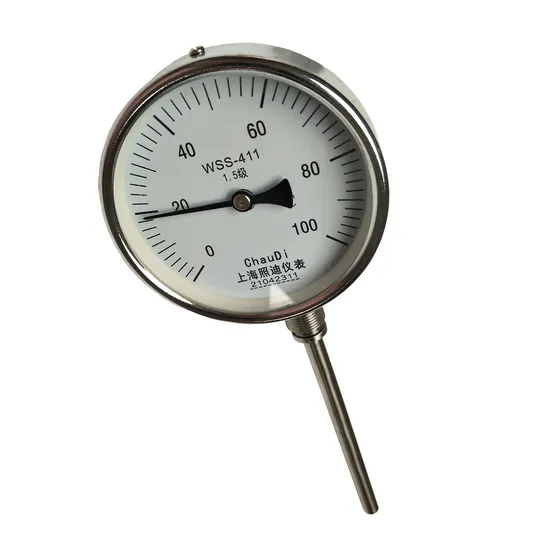

WSSF/N series bimetal thermometer is a kind of on-site instrument for measuring low and medium temperature. Bimetallic thermometer can directly measure the temperature of liquid, steam and gas medium in the range of - 80 ºC ~ + 500 ºC in various production processes.
Principle structure
The principle structure of bimetallic thermometer is that the thermal bimetallic sheet wound into a thread is used as a temperature sensing device, and it is installed in the protective casing, one end of which is fixed, called the fixed end, and the other end is connected to a thin shaft, called the free end. A pointer is installed on the free end spool. When the temperature changes, the free end of the temperature sensing device will rotate, driving the pointer on the thin shaft to change the angle, indicating the corresponding temperature on the dial.
Features
Ultra large range:-40-600 ºC
Special process packaging
Adjustable display direction
Clear and convenient reading

Nominal diameter	60mm 100mm 150mm
Accuracy class	1.0 , 1.5
Measuring range	-40-600ºC
Process Connection	No fixture Threaded connection Flange connection
Temperature sensing element	thermometal
Protective tube	304 316L, customizable
Protective tube	6mm 8mm 10mm 12mm 16mm
Case Material	304 316L aluminum alloy
Gauge pointer	Aluminum alloy black
Instrument glass	Safety glass
Protection level	IP54 IP65
