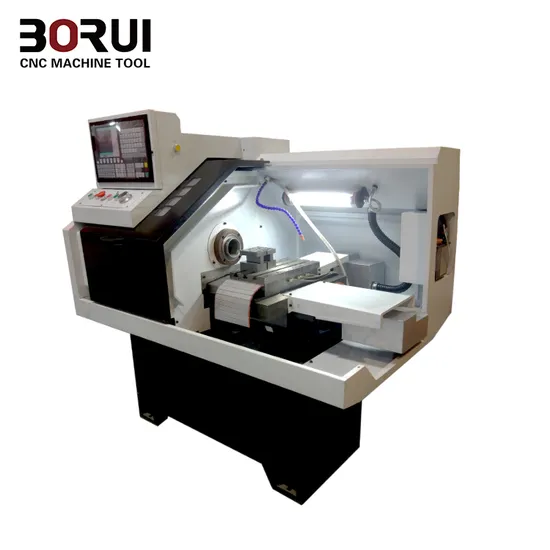

Ck6132 High Precision Industrial Metal CNC Lathe Machine

Product Description

ck6132 High Precision Industrial Metal CNC Lathe Machine
Product Description
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.
The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose th
e CNC system and optional accessories according to your requirement

Product main technical Specifications:

Item	CK6132	CK6136	CK6432
Max. swing dia. over bed	Φ320mm	Φ360mm	Φ360mm
Max. swing dia. over cross slide	Φ145mm	Φ200mm	Φ150mm
Max. workpiece length	450mm	750mm/1000mm	450mm/700mm
Diameter of spindle bore	48mm	Φ60mm	Φ60mm
Spindle taper	A2-4	MT6	MT6
Spindle speed	150~2500rpm	150-2500rpm	150-2500rpm
Chuck size	160mm	200mm	200mm
Tool holder	gany type	4 station	4 station
Tool bar section	20x20mm	20x20mm	20x20mm
Main motor power	4kw	5.5KW	4kw
X/Z axis position accuracy	0.02/0.025mm	0.02/0.025mm	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm	0.01/0.012mm	0.01/0.012mm
X/Z axis torque	4/4N.m	4/6N.M	4/4N.M
X/Z axis fast feeding speed	4/6M/MIN	6/8 M/MIN	8/10 M/MIN
Tailstock sleeve travel	75mm	120mm	100mm
Tailstock taper	MT4	MT4	MT4
Dimension	1730x1000x1570mm	2370/2620*1400*1700mm	1660/1940×1400×1700mm
Weight	1200KG	1750/2000KG	1250/1450kg

Standard configuration: 1) System: GSK928TD-L, servo motor and drive.
2) Manual 3-jaw chuck.
3) 4-station electric tool post.
4) Manual tail stock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.
Optional configuration: 1) CNC system: GSK, Siemens, Fanuc, KND, etc.
2) Hydraulic chuck, pneumatic chuck.
3) Hydraulic tailstock, pneumatic tailstock.
4) 6/8-station electric turret, Gang type tool post.
5) Automatic bar feeder.
Voltage 3-phase 380V/220V/415V/480V
Single phase 220V
Important Notice: Before place order, please confirm with our sales about your local electrical voltage.
The Main Features:
1. Independent spindle, stepless speed change, high precision, lower noise, saving energy and environmental.
2. High speed and precision bearing, spindle speed 2500rpm, smooth finish good.
Main power is 4 KW. High precision ball screw
3. High stability one- piece machine bed, higher rigidity cast iron.
4. High frequency quenching rail, high hardness and high wear resistance.
5. Frequency conversion stepless speed regulation
6. Integrated automatic lubrication

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
