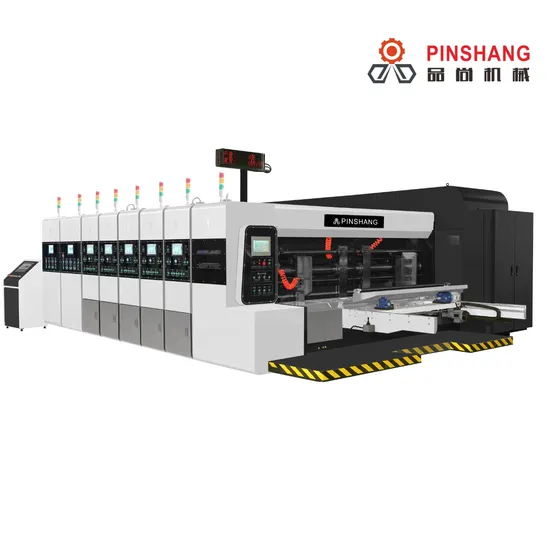

Automatic Flexo Printer Slotter for Corrugated Carton Making Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Y6-0920/Y6-0924
Printing Page
Single Faced
Printing Color
8 Colors
Anilox Roller
Ceramic Anilox Roller
Dryer
IR
Type
IR
Embossing Structure
Rotary Letterpress
Structure
Rotary
Application
Pre Printed Carton
Automatic Grade
Automatic
Printing Speed
150m/mim
After Sales Service
Engineer Can Travel Aboard to Provide Support
Product Object
Corrugated Board / Hollow Board
Keywords
Flexographic Printer
Quality
Manufacturer
Transport Package
Shipping
Specification
Depend on different machine
Trademark
Pinshang
Origin
Foshan, Guangdong
HS Code
8443160001
Production Capacity
100/Year
Product Description
Automatic Flexo Printer Slotter for Corrugated Carton-Making Machine| Gearbox 4 shafts automatic lead edge feeder. |
| Printing cylinder and slotting shaft phases adjusted by servo motors. |
| 45# steel frames, thickness 50mm. |
| Main transmission gears with 20CrMnTi alloy materials. Hardness 58-60 degree |
| Printing units are equipped with vacuum transfer. |
| Eight shafts slotter design, pre-creaser first, creaser second, creaser third, slotter. |
| Inverter motor speed compensation system from die cutter unit. |
| The main motor has a start delay protection function. It will not work if all units are not locked and closed. |
| Automatic all machine units in 1 press. |
| PLC remote control system can be managed and checked on the internet. |
| 9000 order memory system with computer operation system. |
| Model | PS-Y6-0920 | PS-Y6-0924 |
| Max machine speed | 250pcs/min | 250pcs/min |
| Max feeding size | 2100*880mm | 2500*880mm |
| Max skip feeding size | 2100*1100mm | 2500*1100mm |
| Min feeding size | 680*280mm (need auxiliary bar) | 680*280mm (need auxiliary bar) |
| Max printing size | 2000*850mm | 2400*850mm |
| Max die-cutting size | 2000*850mm | 2400*850mm |
| Standard printing plate thickness | 7.2mm | 7.2mm |
| Min slotting distance | 245*75*245*75mm | 245*75*245*75mm |
| Max slotting depth | 250mm | 250mm |
| Paper board thickness | 1.5-12mm | 1.5-12mm |
| Feeding accuracy | ±1.0mm | ±1.0mm |
| Printing accuracy | ±0.5mm | ±0.5mm |
| Slotting accuracy | ±1.0mm | ±1.0mm |
| Die cutting accuracy | ±1.5mm | ±1.5mm |
| Voltage supply | 380V, 50HZ, 3Phase | 380V, 50HZ, 3Phase |
