Advanced Automatic Syringe Filling and Packing Machine for Medical Use

Product Description

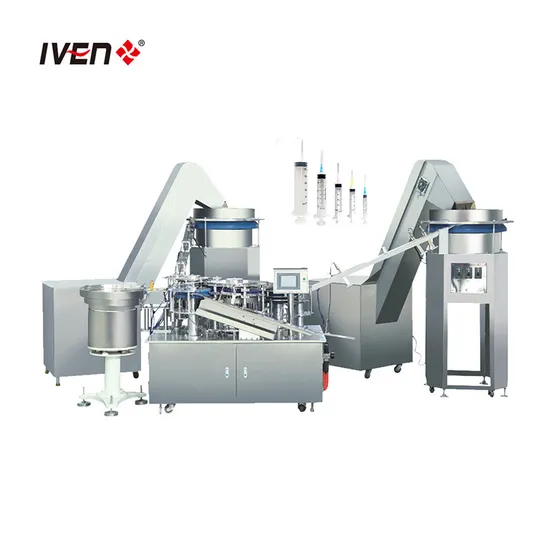

Automatic Syringe Filling and Packing Assembling Machine /
Medical Equipment with GMP Stardard
Our Syringe Assembling Machine is used for assembling syringe automatically. It can produce all kinds of syringes, including luer slip type, luer lock type, etc.
Our Syringe Assembling Machine adopts LCD display to display the feeding speed, and can adjust the assembly speed separately, with electronic counting. High efficiency, low power consumption, easy maintenance, stable operation, low noise, suitable for the GMP workshop.

Our syringe assembling machine consists of feeding system and assembly mechanism.
Feeding system: feed 4 components of syringe (plunger/stopper/needle/barrel) to the assembly mechanism.
Feeding system are composed of feed bin and centrifugal feeder for barrel/plunger, hopper and feeder for needle/stopper.
Feeding system with photoelectric sensors, when assembling mechanism is full of products it will stop feeding, and when there is lack of products it will start working automatically.
Assembly Mechanism: assemble all parts of components together as a finished product. Usually, It completes 3 actions: action 1 - assemble plunger with rubber stopper; action 2 - assemble barrel with needle; action 3 - assemble plunger with stopper and barrel with needle.
Main Technical Parameters:

Model	ZZ-001IV
Applicable Specification	2ml~50ml
Production Capacity	150-250pcs/min
Overall Dimension	4200*3000*2100mm
Weight	1500kgs
Power Supply	AC220V/3KW
Compressed Air Flow	0.3m³/min

Main Configuration List:

No.	Name	Brand	Remark
1	Frequency converter	Mitsubishi (Japan)
2	Motor	Taizhou, China
3	Reducer	Hangzhou, China
4	Adjustable-speed motor	Mitsubishi (Japan)
5	Control system	Single chip microcomputer
6	Touch Screen	China
7	CCD vision sensor system	KEYENCE (Japan)
8	The housing material	SS 304, Plated metal
9	Dust cover	Aluminum profile
