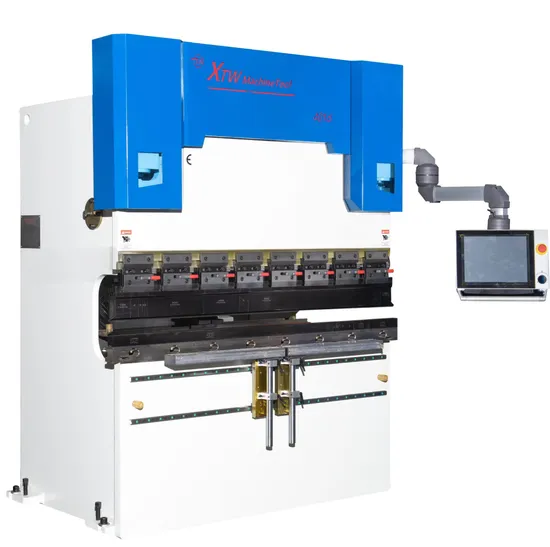

CE CNC Mini Press Brake 40ton Bending Force, 1600mm Working Length Wc67K-40t1600

Product Description

CE CNC Mini Press Brake 40Ton Bending Force, 1600mm Working Length WC67K-40T1600
Technical Data:

Specification	Nominal Pressure(KN)	Length of Worktable(mm)	Distance between uprights(mm)	Throat Depth(mm)	Ram Stroke(mm)	Max Opening Height(mm)	Motor Power(KW)
WC67K-40T1600	400	1600	1200	200	100	300	4
WC67K-63T2500	630	2500	1900	250	120	350	5.5
WC67K-63T3200	630	3200	2500	250	120	350	7.5
WC67K-100T2500	1000	2500	1900	320	120	380	7.5
WC67K-100T3200	1000	3200	2500	320	120	380	7.5
WC67K-100T4000	1000	4000	3000	320	120	380	7.5
WC67K-125T2500	1250	2500	1900	320	120	380	7.5
WC67K-125T3200	1250	3200	2500	320	120	380	7.5
WC67K-125T4000	1250	4000	3000	320	120	380	11
WC67K-160T3200	1600	3200	2500	320	200	460	11
WC67K-160T4000	1600	4000	3000	320	200	460	11
WC67K-200T3200	2000	3200	2500	320	200	460	15
WC67K-200T4000	2000	4000	3000	320	200	460	15
WC67K-200T5000	2000	5000	4000	320	200	470	15
WC67K-200T6000	2000	6000	4800	320	200	470	15
WC67K-250T3200	2500	3200	2500	320	250	470	22
WC67K-250T4000	2500	4000	3000	320	250	520	22
WC67K-250T5000	2500	5000	4000	320	250	520	22
WC67K-250T6000	2500	6000	4800	320	250	520	22
WC67K-300T4000	3000	4000	3200	400	250	520	22
WC67K-300T6000	3000	6000	4800	400	250	520	22

NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.
