Reliable 9 Brushes Car Wash Machine Automatic with Strong Blowers

Product Description

Product Description

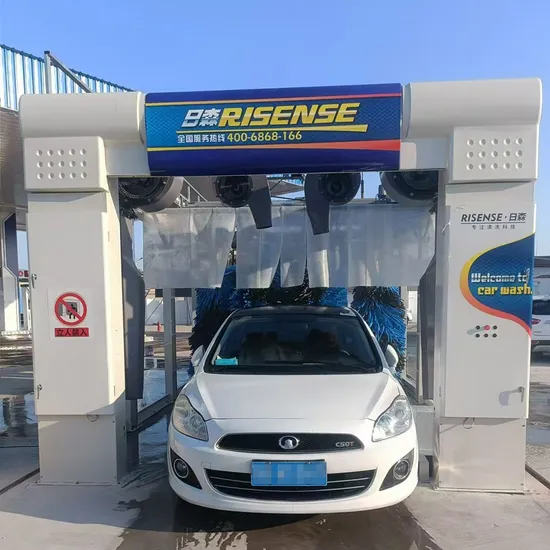

Reliable 9 brushes Automatic Tunnel Car Washing Machine with strong blowers
Drive through car wash tunnel system with 9 brushes.This tunnel car wash system features 9 brushes and will wash every side of the car while using less water and power. This car wash system improves washing efficiency, saves utilities and increases customer profits, making this conveyor car wash a popular system among our customers.
Detailed Photos Product Parameters

Name	9 brushes tunnel car wash machine
Model	CC-690
Technical data	overall dimension	9.5m*3.8m*3.44m
		conveyor belt length: 11.6m(including wheel guide)
	installation size	11880mm*4000mm
	Voltage	Voltage: AC380V50Hz(5-wire system)
	water resource	pipe diameter: DN25 flow≥200L/min
	air resource	pressure 0.75~0.9Mpa/flow≥0.1m³/min
	ground flatness	Error≤10mm
	cars to be washed	car\jeep\ van with less than 10 seats
	car washing size	5.3m*2.1m*2.1m(wheelbase≤3.2m)
	car wash speed	45-55cars/hour
consumption	water consumption	150L/car
	power consumption	0.6kwh/car
	shampoo consumption	20-40ml/car
	wax consumption	30ml/car

Functional Configuration:

functional configuration	hot dipped galvanized steel frame	one group
	shampoo spray system	one group
	wax spraying system	one group
	air drying system according to car shape	one group
	wheel guide system	one group
	chassis washing system	can be added
	High pressure water system	can be added
	Intelligent device data	Management, checking, operation
	Self-diagnosis	Automatic fault display, self checking
brushes	small vertical brush	4
	long vertical brush	4
	top brush	1

Main features
1.Hot-dip galvanized steel frame can keep the whole machine stable and long life use.
2.PLC electronic control system can easy to operate and maintenance.
3.Fully automatic with photoelectric starting and continuously washing.
4.High pressure water washing,shampoo washing, waxing and dryer.
5.Nine dovetail foam brushes keep the Car body no damage and quite clean.
6.Main parts and motors from abroad keep the machine great running performance.
Our company
Qingdao Risense Mechatronics is a car wash equipment manufactuer with almost a decade of design and production experience. Our customers are primarily made of car wash service providers and we supply them with equipent like our car wash tunnel systems, rollover car wash systems, touchless car wash systems, soft-touch carwash systems and high pressure wash systems. Base on time tested technology from Japan and combined with the latest innovations in Europe and America, Risense offers complete and unique car washing systems.
The dedication to quality continues throughout the manufacturing process. We use a mature and stable numerical control processing technology to process all components, frames, motors and non-standard parts used in our car wash equipment.
Our workshop
The Risense factory includes 6 separate manufacturing workshops spanning a total area of 25,000 square meters. We utilize highly advanced and stable numerical control process technology to process and assemble all components, frames, motors, and non-standard parts for our car wash equipment.
Our certificate
Risense has obtained ISO9001 Quality System Certification, CE Quality Certification and ISO 14001 Environment Certification.
Our staff and exhibition:
As a car wash system manufacturer, we have nearly 10 years of production experience. To date, our vehicle cleaning systems have been sold in more than 100 countries including Russia, the United States, Canada, Singapore, Saudi Arabia, Pakistan, and Spain. If you are in search of a new vehicle cleaning system or are looking for an agency opportunity, you are welcome to contact us.
Other products:
Besides tunnel car wash machine, we also manufacture the following products:
1. Rollover car wash machine
2. Bus truck wash machine
3. touchless car wash machine
4. Self-service wash machine
5. Vaccum cleaner
6. Wheel washer
FAQ:
Q: Will we provide pre-sale services ?
A: Free product consultation is available and custom car wash solutions will be provided according to your preferences car wash machine type, daily passenger flow, venue size, etc.
Q: Do you provide construction drawings design?
A: Our engineers will provide customers with a car washing plant design and construction drawings on the basis of your location, environment and purchased equipment model.
Q: How about installation?
A: Our after-sales installation engineers will go to the site and offer customers installation, testing, operational training and maintenance training.
Q: What after-sales service do you provide?
A: 1) English manuals and other documents are available for delivery.
2) Lifelong technical support; maintenance service for the complete service life.
3) Warranty: one year for the whole machine.
