Innovative Dual-Power Turret CNC Lathe for Processing Different Shaft Parts in a Broad Range of Industries

Product Description

Model characteristics
1.machining center equipped with a backup spindle and a true Y-axis dual-power turret.
2.Equipped with imported high-precision linear guides, ball screws, and precision bearings.
3.The backup spindle can perform complex end-face machining of cut surfaces without requiring secondary processing.
4.Dual spindles process complex workpieces, saving time, reducing labor costs, and ensuring concentricity.
5.The dual-power turret processes high-rigidity parts, utilizing the true Y-axis power head to combine turning and milling functions for intricate part machining.
6.Capable of large-scale precision machining of steel, stainless steel, as well as drilling and tapping on shaft ends, and tailstock processing for long shaft parts.
7.Equipped with four-axis turning, milling, drilling, cutting, tapping, and other coordinated processing functions, capable of drilling and tapping the ends of parts.
8.Side-mounted power tool modules enable drilling, tapping, and milling flat functions, completing precise drilling and milling of various shaft components.
Standard configuration
- New-generation system
- Japanese NSK bearings
- Japanese THK ball screws
- Integral cast iron bed
- German Rexroth linear guides
- Taiwan Jian Chun / Taiwan Pusen spindle
Technical parameters

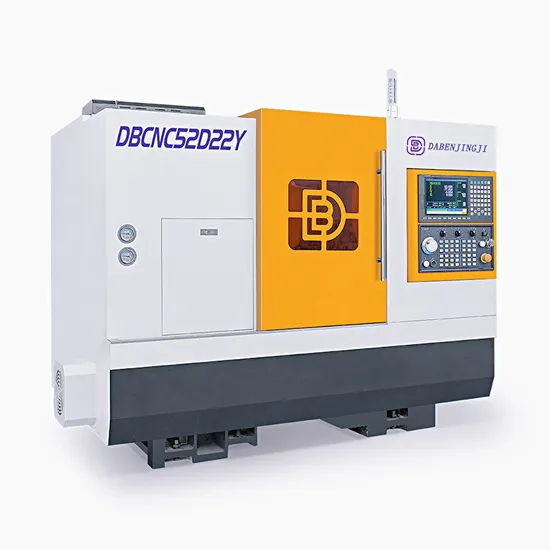

Model	DBCNC52D22Y
Item	Describe	unit	Parameter
Processing capacity	Number of axles	/	7axis/7axis(X+Z+Z1+C1+C2+Y+TD)
	Spin diameter on the bed	mm	Φ700
	Maximum machining diameter	mm	Φ500
	Maximum processing length	mm	Main spindle 500, secondary spindle 250
Spindle	Spindle nose end	/	Positive :A2-6, secondary: A2-5
	Spindle bore	mm	Positive :Φ65, secondary :Φ56
	Bar diameter	mm	Positive :Φ52 Deputy :Φ46
	Spindle speed	/	Positive :0-4000, secondary: 0-5000
	Oil pressure chuck	/	Positive :8" or 52 type collet, secondary :6" or 46 type collet
Turret	Knife tower model	/	BMT45/BMT55
	Knife number	T	12T/15T
	Outer diameter knife handle	mm	25mm
	Inner diameter tool handle	mm	Φ32mm or Φ40mm
	TD axis (milling axis) speed	/	0-4000rpm
Slider	X1 axis stroke (diameter)	mm	500mm
	Y1 axis travel	mm	120mm(±60mm)
	Z1/Z2 axis stroke	mm	300mm/600mm
	X1 axis rapid displacement	/	20
	Y1 axis rapid displacement	/	20
	Z1/Z2 axis rapid displacement	/	20
Mechanical precision	Main and secondary axis indexing and repeated positioning accuracy	/	±0.005°
	Main and auxiliary axis indexing positioning accuracy	/	±0.002°
	X/Y/Z/Z1 repeatability	mm	0.002mm
	X/Y/Z/Z1 axis positioning accuracy	mm	0.003mm
Motor	Spindle Motor	KW	11KW
	Auxiliary spindle motor	KW	7.5KW
	X1 axis X1	KW	3.1KW
	Y1 axis Y1	KW	3.1KW
	Z1/Z2 axis	KW	3.1KW
	TD axis (milling axis)	KW	3.9KW
	Oil pump motor	KW	3.1KW
	Cooling pump motor	KW	1.5KW
Capacity	Oil pressure tank capacity	L	65L
	Cooling water tank capacity	L	150L
Size	External dimensions (length * width * height)	mm	3200*2300*2000
	Overall weight	KG	5500KG

Detailed Photos
Explore our High-Precision Dual-Spindle Turning-Milling Machine for cost-saving in various fields. Ideal for metal processing, this CNC lathe center offers efficient CNC cutting and milling capabilities. Enjoy online support and a 1-year warranty.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.
