Large (CNC) Horizontal Heavy-Duty Lathe CW61160X4000 6T 8T 10T Loading

Product Description

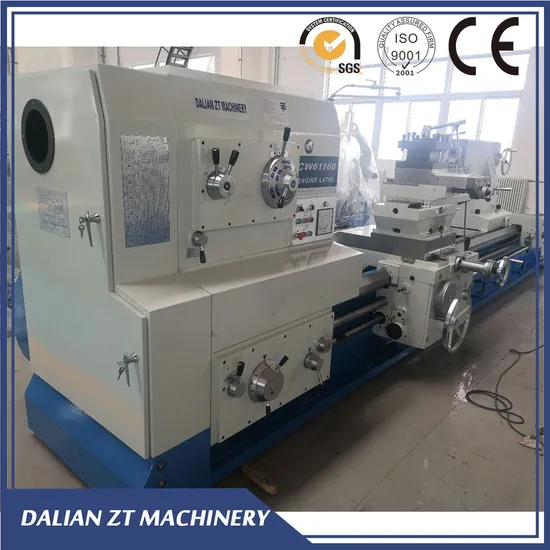

CW61160(Center distance can be up to 16000mm)
Features: Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate; Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc.. The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.

ITEM	CW61160-2x3000/10T	CW61160x4000/8T
SWING OVER BED	1,600 mm	1,600 mm
DISTANCE BETWEEN CENTERS	3,000 mm	4,000 mm
MAX. MACHINING LENGTH	2800 mm	3,800 mm
MAX. SWING OVER CARRIAGE	1,200 mm	1,280 mm
WIDTH OF BEDWAYS	1100 mm	970 mm
MAX. SUPPORTING WEIGHTS BETWEEN CENTERS	10,000 KG	8,000 KG
SPINDLE NOSE	ISO A2-15	ISO A2-15
TAPER IN SPINDLE: METRIC NO. 140 / SPINDLE BORE	130 mm	130 mm
SPINDLE SPEEDS	21 STEPS, FROM 2.5 TO 250 RPM	21 STEPS, FROM 2.5 TO 250 RPM
TRAVEL OF CROSS SLIDE	880 mm	880 mm
TRAVEL OF MIDDLE SLIDE	400 mm	400 mm
TRAVEL OF UPPER SLIDE	200 mm	200 mm
RAPID TRAVERSE	LONGITUDINAL, 3740 mm / min	LONGITUDINAL, 3740 mm / min
CROSS SLIDE	1870 mm / min	1870 mm / min
TOP SLIDE	935 mm / min	935 mm / min
NUMBER AND RANGE OF FEEDS	97 NO.S	97 NO.S
LONGITUDINAL	0.064 TO 12 mm	0.064 TO 12 mm
CROSS SLIDE	0.032 TO 6 mm	0.032 TO 6 mm
TOP SLIDE	0.016 TO 3 mm	0.016 TO 3 mm
NO. & RANGE OF METRIC THREADS	56 NDS, 1 TO 120 mm	45 KINDS, 1 TO 120 mm
NO. & RANGE OF INCH THREADS	56 NDS, 30 TO 1 / 4 T. P. I.	42 KINDS, 30 TO 1 / 4 T. P. I.
NO. & RANGE OF MODULE THREADS	56 NDS, 0.5 TO 60	46 KINDS, 0.5 TO 60
NO. & RANGE OF DIAMETRIC PITCHS	56 NDS, 60 TO 0.5 D. P.	48 KINDS, 60 TO 0.5 D. P.
TAPER IN TAILSTOCK QUILL	MORSE NO. 6	MORSE NO. 6
MAX. TRAVEL OF TIALSTOCK QUILL	300 mm	300 mm
POWER OF MAIN MOTOR	AC30 KW	AC30 KW
Power of rapid motor	1.5 KW	1.5 KW
Power of pump motor	0.55 KW	0.55 KW
Power of cooling motor	0.15 KW	0.15 KW
Net dimension of the machine	6,040×2,060×2,230 mm	7,040×2,060×2,230 mm
N. W. of machine	152,00kg	15,300 KG

ACCESSORIES
4 JAW INDEPENDENT CHUCK, DIA. OF 1400 mm, 1 SET
STEADY REST, RANGE 220 TO 630 mm, 1 SET
DEAD CENTER, 2 PIECES
REDUCING SLEEVE IN SPINDLE, 1 PIECE
COOLING UNIT
WORK LIGHT
bOLTS for foundation, 1 SET
SPECIAL TOOLS





Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
Exhibitions & Customers' Visiting
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.

3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment .
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
