Dx 1515 CNC End Face Milling Machine for H Beam Box Beam

Product Description

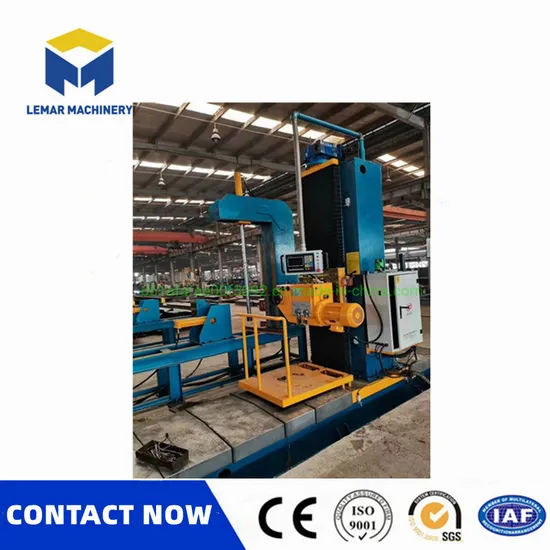

DX 1515 CNC End Face Milling Machine for H beam Box beam The end face milling machine is used for milling the end face of box beam steel and H-beam steel.
It has a large processing range and is suitable for end-face cutting of metal materials such as castings and steel parts.
Both sides of very long workpieces can be milled. Features of the face milling machine manufactured by Wuxi Lemar Machinery Equipments Co.,Ltd: 1. The hydraulic support frame is selected, which can fix the beam and open up, which is convenient for hoisting.
2. Adopt numerical control system, easy to operate.
3. The angle of the milling head can be adjusted manually in the vertical direction to chamfer the end face.
4. Equipped with RS232 interface.
5. The operation interface has the functions of man-machine dialogue, error compensation and automatic alarm.
Technical Details:

Item	Details
Model	DX1515 End Milling Machine
Milling for	Pipe or Box beam H beam CNC End Facing Machine
Control mode	CNC Control
Workpiece box beam Height	1500mm
Workpiece box beam Width	1500mm
Facing Head Power	5.5kw
Horizontal feed motor power	2.2 kW
Horizontal Facing Speed	Stepless within 150∼600mm/min, VFD, inverter control
Power supply	380V, 60Hz, 3p
Milling head spindle speed	75~420 rpm
Vertical Facing Speed	Stepless within 150∼ 600mm/min, VFD, inverter control
Column along Horizontal and Milling carriage along Vertical direction Idle Speed	1200 mm/min., constant
Facing Head Spindle Rotation Speed	100 ~ 630rpm
Travel Guide in Horizontal and Vertical Way	Heavy duty Precise Linear Guiderail, Assembled
Travel Transmission	Horizontal by gear and rack; Vertical by leadscrew
Angle of Facing Head along Vertical Surface	0 ∼45 degree
Vertical Milling Carriage Travel Driving Motor	3 kW

Instructions for use of CNC face milling machine 1. Before starting the work, observe the lubrication of the bed guide rails, slide tables and other parts of the Box beam End face milling machine. Because the machine has many lubrication points, it should be ensured that the lubrication is sufficient. For other precautions, please refer to the operating regulations of the machine tool industry.
2. Pay attention to the fast and slow operation of the slide table:
(1) Slow cutting motion: press the fast-forward button to fast-forward the worktable, and when cutting is required, press the work-forward button to start the worktable; when the cutting is finished, the worktable stops first, and then presses the fast-reverse button to quickly return the worktable , when the rear limit switch is pressed, the table stops moving. (2)Rapid movement of the table of T beam end face milling equipment: At this time, you can select the fast gear, and jog fast forward (or fast backward) to the required position, which can reduce the auxiliary time of cutting.
Wuxi Lemar Machinery Equipments is committed to the design and manufacture of various CNC cutting equipment, steel structure production lines, complete sets of welding equipment, and painting equipment. With advanced concepts, excellent technology, and exquisite craftsmanship, Lemar company has formed a multi-variety and multi-series product structure.
The products serve many industries such as construction machinery, construction machinery, boiler pressure vessels, steel structures, and wind power generation. Our products are exported Southeast Asia, the Middle East, Europe and the United States and many other countries.
