Product Description

Product description

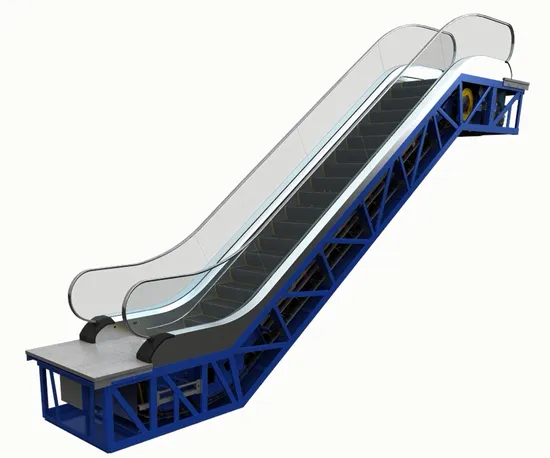

Promote Sales New Arrival Advanced Technology VVVF Escalator for Airport
Model: 20F002
Safe, pretty and efficient, the distinctive Syney escalator displays construction class and style, making customers better enjoy their shopping.

Escalator	Indoor and Outdoor
Travel Height	H≤30000mm
Step Width	600mm, 800mm, 1000mm
Inclined Degree	35°, 30°
Speed	0.5m/s, 0.65m/s
Escalator Width	1260mm, 1460mm, 1660mm
Noise	≤65dB
Vibration	≤35cm/s²
Flat step	2 flat step, 3 flat step, 4 flat step
Running	Single speed up &down reversible
Delivery	40ft high container
Power Supply	Power 380V , 50Hz Three Phase Five Wire System Lighting 220V, single phase
Energy Saving Function	VVVF, Auto start stop

Escalator safety measures

Functions

Standard safety functions
1	Emergency Stop Button	Yes	19	Machine Room Protect Board	Yes
2	Handrail Entry Contact	Yes	20	Step Light	Yes
3	Broken Step Chain Protection	Yes	21	Skirt Panel Contact	Yes
4	Comb Plate Contact	Yes	22	Step Yellow Safety Line	Yes
5	Inspection Socket	Yes	23	Alarm Bell When Start	Yes
6	Phase Failure and Phase Stagger Protection	Yes	24	Floor Plate Open Device	Yes
7	Step Sag Contact	Yes	25	Alarm Signs	Yes
8	Stop Button	Yes	26	Main Driving Chain Broken Protect Device	Yes
9	Main Power Switch	Yes	27	Overspeed Lowspeed Protection	Yes
10	Circuit Grounding Device	Yes	28	Step Static-free Device	Yes
11	Non-operational Reversal Safety Device	Yes	29	Handrail Belt Speed Detect Protection	Yes
12	Overload Protect	Yes	30	Floor Plate Open Detect Device	Yes
13	Portable Lamp and Socket	Yes	31	Step Missing Detect Protection	Yes
14	Handrail Belt Antistatic Device	Yes	32	Working Brake Open Detect Device	Yes
15	Traction Flywheel Cover Open Detect Switch	Yes	33	Skirt Panel Anti Clamp Device	Yes
16	Maintenance Power Supply Socket	Yes	34	Working Brake	Yes
17	Step Anti Bounce Device	Yes	35	Auto Lubricating Device	Yes
18	Safety Signs	Yes
Optional functions
1	Blocking device	○	8	Handrail lightening	○
2	Anti-climb device	○	9	Direction indicator	○
3	Anti-climb device is Not preset.	Yes/No	10	Oil-water separator	○
4	Vertical protect board	○	11	Liquid level switch	○
5	Handrail disconnect protect device	○	12	Heating device	○
6	Brake shoe wearing detection	○	13	Cladding	○
7	Auxiliary brake	○

Certificates
CE Certificate of escalator and moving walk/ passenger conveyor
CE Certificate of energy-efficiency of lifts: A+++
EAC Certificate of escalator and moving walk/ passenger conveyor
Company Profile
SYNEY is the leading elevator & escalator manufacturer in China. Our main products include passenger elevator, freight elevator, goods lift, panoramic elevator, observation lift, hospital bed elevator, villa home lift, escalator, waving escalator and moving walk.etc.

Depending on advanced technologies, modern equipments, standardized management, and perfect marketing customer service network, the business of Syney Elevator has been improving steadily, not only covers the whole country, but also has been sold to Russia, Middle East, Southeast Asia, Korea and America, etc, becoming one of elevator enterprises with the highest potential.

The enterprise has two manufacturing factories. The registered capital is USD 35 million, covering nearly 99000 square meters, with over 80 engineering technicians and nearly 30 senior managers.
From the raw material getting into factory to finished products getting out to customers, Syney has a strict operation system to control each steps.
No rejected raw material will be accpeted!
When raw material comes to factory, QC department will check all the materials, once any fault items found, it will be returned to suppliers at once. Only qualified material will get into raw material warehouse.
Production management
Every week, production department will make the production plan and update the schedule of online products. There is daigital board in each workshop showing the production plan everyday. In this way, from workers to managers all clearly know which project is online now.
Every moring, managers will guide the workers to run for 15 minutes first to refresh. Then check the machines status before operation and check again after one day job.
Packing
All parts are packed in solid plywood boxes, which can stand long time sea shipping and fumigation free. For some important parts like control cabinet, door operator and motor, parts will be covered by a strong film first, with desiccant, before put into boxes.
Quality control
1) All raw materials will be checked before get into warehouse. And bulk electronic product do sampling inspection. All parts must have qualified certificate from suppliers. QC1 is responsible for this.
2) During production stage, QC2 will check commissioning for each elevator, escalator and moving walks.
3) After elevator and escalator finished, QC3 will test the match of elevator motor and control cabinet, and the running condition of escalator and moving walks.
4) After packed, QC4 will check package condition for each parts, and takes photo for further reference.
5) When delivery, QC5 will check if all parts packed in container to avoid any missing, and takes photo for further reference.
