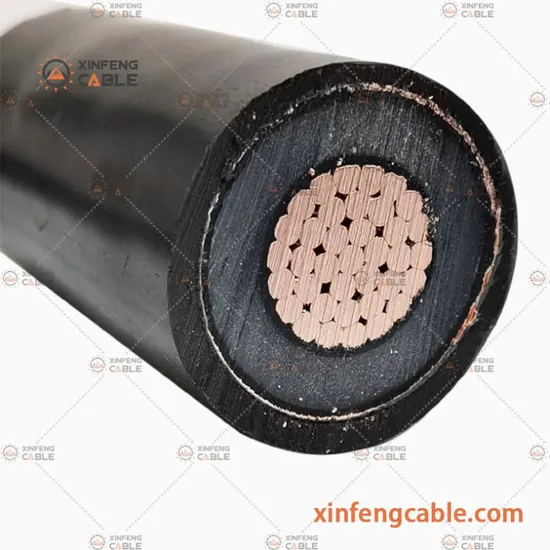

1X300sq. mm 19/33kv 36kv Cu/XLPE/PVC Copper Insulated Mv Underground Power Cable

Product Description

Product Description
Medium Voltage Electrical Cable
Application
Medium Voltage Power and Special Application Cables are used in various indoor and outdoor applications in industries, switchboards and power stations.
Our products conform to various international standards. They are tested at leading laboratories and are approved by many utility companies, ministries and major industries.
Xinfeng brand is the manifestation of Xinfeng's constant endeavor for providing a comprehensive range of construction materials to satisfy its customers with products of the highest quality standard and safety, coupled with prompt services.
Standards
GB/12706.2, IEC60502-2,BS 6622 , VDE 0276, HD 620 S1,NFC 33-226, IS 1554 , IS 7098 and ICEA S-66-524 etc.
Packsge Cable is packaged in wooden drum, steel wooden drum, steel drum or coil. Metallic Unarmour

Specification	Outer diameter	Nominal thickness of insulation	Nominal sheath thickness	Approx. Outer diameter of cable	Approx. Weight of cable		Max. D.C. resistance of conductor at 20ºC
					CU	AL	CU	AL
mm2	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
1×25	6.0	8.0	1.9	29.3	1006.8	852.1	0.727	1.20
1×35	7.0	8.0	1.9	30.4	1142.3	925.8	0.524	0.868
1×50	8.4	8.0	2.0	31.9	1340.4	1031.0	0.387	0.641
1×70	10.0	8.0	2.0	33.6	1592.3	1159.2	0.268	0.443
1×95	11.5	8.0	2.1	35.2	1886.4	1298.7	0.193	0.320
1×120	13.0	8.0	2.1	36.8	2180.1	1437.7	0.153	0.253
1×150	14.5	8.0	2.2	38.4	2519.0	1590.9	0.124	0.206
1×185	16.2	8.0	2.2	40.2	2912.1	1767.5	0.0991	0.164
1×240	18.4	8.0	2.3	42.6	3510.3	2025.4	0.0754	0.125
1×300	20.5	8.0	2.4	44.8	4148.6	2292.5	0.0601	0.100
1×400	23.5	8.0	2.5	48.0	5191.9	2717.1	0.0470	0.0778
1×500	26.5	8.0	2.6	51.2	6234.1	3140.6	0.0366	0.0605
1×630	30.0	8.0	2.7	54.9	7572.4	3674.6	0.0283	0.0469

3×25	6.0	5.5	2.6	49.9	2491.3	2025.0	0.727	1.20
3×35	7.0	5.5	2.7	52.3	2922.3	2269.4	0.524	0.868
3×50	8.4	5.5	2.8	55.5	3536.9	2604.2	0.387	0.641
3×70	10.0	5.5	2.9	59.1	4314.1	3008.3	0.268	0.443
3×95	11.5	5.5	3.0	62.6	5243.6	3471.5	0.193	0.320
3×120	13.0	5.5	3.1	66.1	6142.2	3903.7	0.153	0.253
3×150	14.5	5.5	3.2	69.5	7211.1	4413.0	0.124	0.206
3×185	16.2	5.5	3.3	73.4	8423.3	4972.4	0.0991	0.164
3×240	18.4	5.5	3.5	78.5	10279.2	5802.3	0.0754	0.125
3×300	20.5	5.5	3.6	83.3	12247.7	6651.5	0.0601	0.100
