Factory Price Galvanized Maize Wheat Silo High Quality Grain Silo

Product Description

product description
Prefabricated galvanized cement cone bottom silo, this type is free flow discharge, good self-cleaning, no residue, widely used in seed, feed breeding and other industries that need to be cleaned frequently. Cement cone bottom silo has the characteristics of strong column body and high strength, there are 45 and 60 slope, of which 60 cone bottom is suitable for storing large, large viscosity particles and powder materials.
Features and advantages:
(1) Free flow discharge, no labor, low basic cost.
(2) prefabricated silo, short construction period.
(3) Good thermal insulation performance.
(4) Easy to disassemble, movable; Local plate damage can be replaced separately, greatly extending the service life.
(5) The appearance color can be customized to meet your needs.
Cone bottom bin properties
1. Single warehouse specification: 30-1500 tons.
2, diameter specification: φ3.6 - φ12.8.
3, Material: galvanized (275g/m³ 350g/m³ 600g/m³).
Galvanized aluminum magnesium (275g/m³ 450g/m ³ 600g/m³).
4, insulation material: polyurethane foam, glass wool, etc.
Specification

Model	Capacity(T/CBM)	Eave Height(M)	Total Height(M)	Maize Capacity(T)	Wheat Capacity(T)
TCZK08210	650	10.135	17.185	468	488
TCZK09112	1039	13.495	21.215	748	779
TCZK10014	1451	15.735	24.128	1045	1088
TCZK11013	1646	14.615	23.680	1185	1234
TCZK11914	2080	15.735	25.672	1498	1521

Silo main components
25º sealed roof for grain storage bin roof
The special trapezoidal geometry gives it high strength and stiffness. Professional sealing technology makes the ceiling closely connected to the side wall to prevent stored products from getting damp.
Grain silo silo cylindrical body
The bottom silo of the Singu brand hopper is made of the main plate and stiffener, made of structural galvanized steel S350GD with high elastic tolerance, coated with zinc equivalent to 450 g/m2.
Concrete silo base
When the diameter of the cone bottom silo is less than 12.8m, cement cone base or steel base can be used to achieve automatic unloading. When the diameter of the silo is greater than 12.8m, the flat bottom cement base is used, and the unloading is required by a spiral cleaner. The price of the cement base is moderate, but the construction period is longer.
Shandong Xingu storage equipment company workshop display
Our company has 8000 square meters of production workshop and advanced production equipment, so we can guarantee the quality and delivery time for customers.

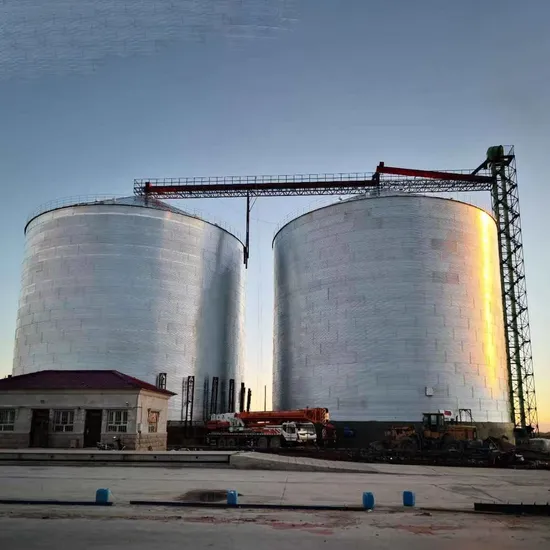

Some cone bottom silos have been successfully

installed and operating in Argentina, Australia, the United States, Uganda, Ethiopia, Iran, India, Malaysia, Myanmar, Pakistan, South Africa, Sudan, Serbia, Thailand and Vietnam.
Xingu honorary certificate
Exhibitions and customers
FAQ
