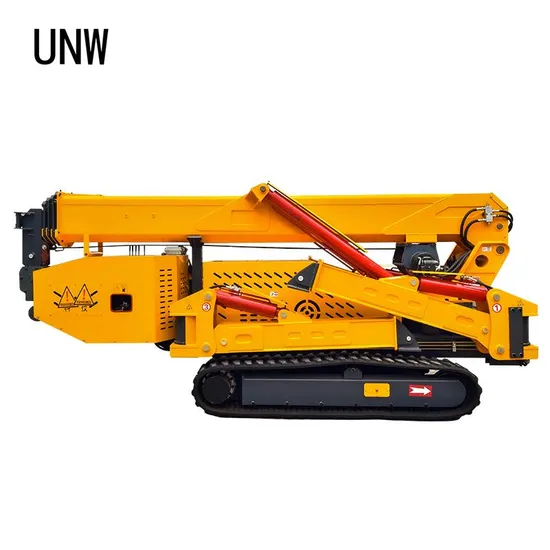

EU Standard 5tons Narrow Space Telescopic Crawler Spider Crane with Folding Boom

Product Description

China Mini Spider Crawler Crane With Foldable Lifting Construction Telescopic Outrigger Product Description
UNW Brand Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Features & Advantages:
1. Standard configuration: Dual powers with AC Power and Diesel Engine/Petrol Engine; Single power is optional.
2. Optional Multiple engines to Meet different emission standards of different countries.(Euro 5 standards/EPA Certificate)
3. The Crawler Spider Crane for moving loads quickly, easily, and safely.
4. Suitable for occasions with limited space.
5. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane with large working radius.
6. The main arm is 4-5 sections. 6 sections arms are optional. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
7. The telescoping limit of the boom uses the double insurance of the marking line and the alarm.
Product Parameters

Model No.			SBL1.2C	SBL2.0C	SBL3.0C	SBL5.0C	SBL8.0C	SBL10.0C	SBL12.0C	SBL14.0C
Max.Gound lifting height			6.5m	7m	10m	17m	18.5m	22m	24.5m	24.5m
Load capacity			1.2tons	2 tons	3 tons	5 tons	8 tons	10 tons	12 ton	14 tons
Boom length/boom QTY			1.7-5m/4	1.7-6m/5	2.8-8.2m/5	4-15m/5	4.5-16m/5	5-21m/6	5.5-23m/5	5.5-23m/5
Max operating radius			5.8m×0.2t	6.0m×0.25t	10.0m×0.8t	16.0m×0.3t	17.0m×0.3t	21.0m×0.8t	23m×0.8t	23m×1.2t
Walking device		Walking mode	Hydraulic motor drive, two speed
		Walking speed	0-2.5km/h	0-2.5km/h	0-2.5km/h	0-5.5km/h	0-5.5km/h	0-5.5km/h	0-5.5km/h	0-5.5km/h
		Climbing ability	20°(36%)
Engine		Engine	AC Electric + Gasoline		AC Electric + Diesel Dual Power(EURO II emission standard)
		Oil Engine	HONDA 9.6KW		Changchai	Yunei YN27GBZ/2.7L			Quanchai
		Fuel/volume	Gasoline/8L		Diesel/8L	Diesel/45L
		Battery capacity	12v 45AH	12v 45AH	12v 45AH	24v 45AH	24v 45AH	24v 45AH	24v 45AH	24v 45AH
Weight(KG)			1200kg	1500kg	2400kg	6300kg	7600kg	8200kg	11500kg	13500kg
Vehicle Size(e( L*W*H)(m)			2.1*0.6*1.4	2.2* 0.95*1.65	3.4*0.95*1.65	4.5 *1.4 * 2.1	4.95*1.6*2.25	5.5*1.6*2.25	5.7*1.8* 2.4	6.5*2*2.4m
20ft container loading Qty			5 sets	3 sets	2 sets	1 set	1 set	1set	1 set	1set

Detailed Photos
Real Order
Application
Company Profile
Shandong Unid Intelligent Technology Co., Ltd. is a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platform with more than 10-years-experience, including towable boom lift,crawler spider crane,Intelligent glazing robot, suction cups vacuum glass lifters, sandwich panels vacuum lifters, metal sheet vacuum lifters and other single-circuit and dual-circuit vacuum lifters.
We always keep "To make Construction easier,safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
After Sales Service 1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
FAQ 1. Are you a factory or trading company? Yes, we're factory with over 10 years exporting experience.2. What's the MOQ?1 UNIT3. Do you offer OEM&ODM service?Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.4. What's the quality warranty?24 months. Spare parts provided freely within quality warranty.5. How can I get the after-sales service?We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service6. What's your QA&QC policy?100% Test before shipping.
