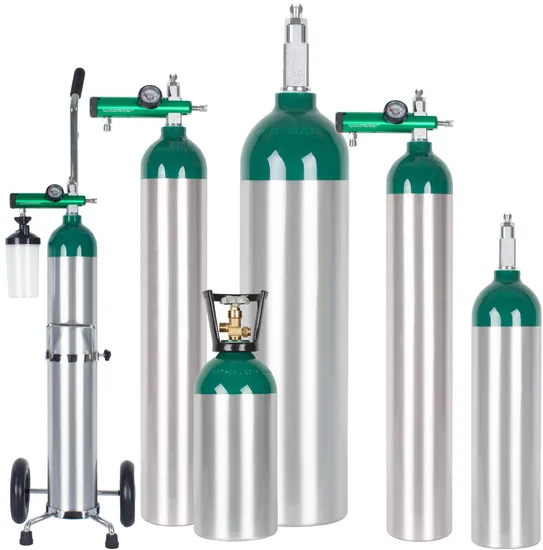

2.8L 4.6L 3.9L 10.5L 15.7L Medical Oxygen Aluminum Cylinder

Product Description

Products Description

Products will be inspected by TUV or DOT auditor and be with 3rd party inspection certificate.

ISO 7866 Seamless Aluminum Alloy Gas Cylinder
No.	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	60-0.3-250	60	166.7	250	AA6061	H	3.26	0.3	190	0.35	TPED
2	60-0.4-250							0.4	235	0.43
3	60-0.5-250							0.5	280	0.52
4	60-0.6-250							0.6	330	0.60
5	60-0.7-250							0.7	380	0.68
6	60-0.8-250							0.8	425	0.77
7	111-2.0-250	111	166.7	250	AA6061	H	6.02	2.0	340	2.5	TPED
8	111-2.5-250							2.5	405	2.9
9	111-3.0-250							3.0	475	3.3
10	111-3.5-250							3.5	545	3.7
11	111-4.0-250							4.0	610	4.1
12	111-4.5-250							4.5	680	4.5
13	117-2.0-250	117	166.7	250	AA6061	H	6.34	2.0	320	2.6	TPED
14	117-2.5-250							2.5	380	3.0
15	117-3.0-250							3.0	440	3.4
16	117-3.5-250							3.5	500	3.8
17	117-4.0-250							4.0	560	4.2
18	117-4.5-250							4.5	620	4.5
19	140-3.0-250	140	166.7	250	AA6061	H	7.59	3.0	335	4.1	TPED
20	140-4.0-250							4.0	420	4.9
21	140-5.0-250							5.0	505	5.7
22	140-6.0-250							6.0	590	6.5
23	140-6.5-250							6.5	635	6.9
24	140-7.0-250							7.0	675	7.3
25	152-5.0-250	152	166.7	250	AA6061	H	8.24	5.0	450	6.1	TPED
26	152-6.0-250							6.0	520	6.9
27	152-6.7-250							6.7	570	7.4
28	152-7.5-250							7.5	630	8.0
29	152-8.0-250							8.0	665	8.4
30	152-10.0-250							10.0	810	10.1
31	159-5.0-250	159	166.7	250	AA6061	H	8.62	5.0	415	6.2	TPED
32	159-6.0-250							6.0	480	6.9
33	159-7.0-250							7.0	545	7.6
34	159-7.5-250							7.5	580	8.0
35	159-8.0-250							8.0	615	8.5
36	159-10.0-250							10.0	745	10.0
37	203-8.0-250	203	166.7	250	AA6061	H	11.0	8.0	420	10.5	TPED
38	203-10.0-250							10.0	500	11.9
39	203-12.0-250							12.0	580	13.4
40	203-13.4-250							13.4	635	14.3
41	203-15.0-250							15.0	700	15.5
42	203-20.0-250							20.0	905	19.5

No.	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
43	111-1.0-310.5	111	207	310.5	AA6061	H	7.59	1.0	220	2.1	TPED
44	111-2.0-310.5							2.0	360	3.1
45	111-2.5-310.5							2.5	430	3.6
46	111-3.0-310.5							3.0	500	4.1
47	111-3.5-310.5							3.5	570	4.6
48	111-4.0-310.5							4.0	640	5.0
49	152-4.0-310.5	152	207	310.5	AA6061	H	10.39	4.0	400	6.3	TPED
50	152-5.0-310.5							5.0	475	7.3
51	152-6.0-310.5							6.0	550	8.2
52	152-7.0-310.5							7.0	625	9.2
53	152-8.0-310.5							8.0	700	10.2
54	152-10.0-310.5							10.0	850	12.2
55	185-5.0-310.5	185	207	310.5	AA6061	H	12.64	5.0	355	8.5	TPED
56	185-8.0-310.5							8.0	505	11.3
57	185-11.0-310.5							11.0	655	14.2
58	185-11.1-310.5							11.1	660	14.3
59	185-12.0-310.5							12.0	705	15.2
60	185-15.0-310.5							15.0	855	18.1
61	185-8.0-310.5	203	207	310.5	AA6061	H	13.87	8.0	445	12.5	TPED
62	185-11.0-310.5							11.0	570	15.5
63	185-11.1-310.5							11.1	575	15.6
64	185-12.0-310.5							12.0	615	16.5
65	185-15.0-310.5							15.0	740	19.4
66	185-18.0-310.5							18.0	870	22.4

DOT-3AL Seamless Aluminum Alloy Gas Cylinder
No.	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	133-3.0-124.1 5.24-183-1800	133 5.24in	124.1 1800PSI	206.9 3000PSI	AA6061	H	5.47 0.215in	3.0 183in3	340 13.4in	2.9 6.4lbs	DOT
2	133-3.4-124.1 5.24-207-1800							3.4 207in3	375 14.8in	3.1 6.8lbs
3	133-4.0-124.1 5.24-244-1800							4.0 244in3	430 16.9in	3.7 8.2lbs
4	175-5.0-124.1 6.89-305-1800	175 6.89in	124.1 1800PSI	206.9 3000PSI	AA6061	H	7.19 0.283in	5.0 305in3	345 13.6in	5.1 11.2lbs	DOT
5	175-6.7-124.1 6.89-408-1800							6.7 408in3	430 16.9in	6.0 13.2lbs
6	175-6.8-124.1 6.89-415-1800							6.8 415in3	435 17.1in	6.1 13.4lbs
7	175-10.03-124.1 6.89-612-1800							10.03 612in3	600 23.6in	7.9 17.4lbs
8	175-10.2-124.1 6.89-622-1800							10.2 622in3	610 24.0in	8.2 18.1lbs
9	203-10.0-124.1 8.0-610-1800	203 8.0in	124.1 1800PSI	206.9 3000PSI	AA6061	H	8.34 0.328in	10.0 610in3	475 18.7in	9.4 20.7lbs	DOT
10	203-13.4-124.1 8.0-818-1800							13.4 818in3	605 23.8in	11.2 24.7lbs
11	203-14.0-124.1 8.0-854-1800							14.0 854in3	630 24.8in	11.6 25.6lbs

No.	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	111-1.7-124.1	111 4.37in	124.1 1800PSI	206.9 3000PSI	AA6061	H	4.55 0.179in	1.7	270	1.65	DOT
2	111-1.8-124.1							1.8	285	1.7
3	111-1.9-124.1							1.9	295	1.75
4	111-2.0-124.1							2.0	310	1.8
5	111-2.1-124.1							2.1	320	1.85
6	111-2.2-124.1							2.2	335	1.9
7	111-2.3-124.1							2.3	345	2.0
8	111-2.4-124.1							2.4	360	2.05
9	111-2.5-124.1							2.5	370	2.1
10	111-2.7-124.1							2.7	400	2.2
11	111-2.8-124.1							2.8	415	2.3
12	111-3.0-124.1							3.0	435	2.4
13	111-1.4-13.9	111 4.37in	139 2015PSI	231.7 3359PSI	AA6061	H	5.11 0.201in	1.4	240	1.6	DOT
14	111-1.7-13.9							1.7	280	1.8
15	111-1.9-13.9							1.9	305	1.9
16	111-2.0-13.9							2.0	320	2.0
17	111-2.8-13.9							2.8	420	2.5
18	111-2.9-13.9							2.9	435	2.55
19	111-3.0-13.9							3.0	445	2.6
20	111-3.5-13.9							3.5	510	3.0
21	111-3.7-13.9							3.7	535	3.1
22	111-3.9-13.9							3.9	560	3.2
23	111-4.0-13.9							4.0	575	3.3
24	111-4.5-13.9							4.5	635	3.5
25	111-4.6-13.9							4.6	650	3.6
26	111-4.7-13.9							4.7	665	3.7
27	133-2.8-15.28	133 5.24in	152.8 2216PSI	254.8 3694PSI	AA6061	H	6.74 0.265in	2.8	320	3.1	DOT
28	133-3.0-15.28							3.0	345	3.2
29	133-3.2-15.28							3.2	365	3.4
30	133-3.4-15.28							3.4	385	3.5
31	133-3.5-15.28							3.5	395	3.7
32	133-3.9-15.28							3.9	430	3.9
33	133-4.0-15.28							4.0	440	4.0
34	133-4.2-15.28							4.2	460	4.1
35	133-4.5-15.28							4.5	485	4.3
36	133-4.6-15.28							4.6	495	4.4
37	133-4.7-15.28							4.7	505	4.5
38	133-5.0-15.28							5.0	530	4.7
39	175-4.5-15.28	175 6.89in	152.8 2216PSI	254.8 3694PSI	AA6061	H	8.85 0.348in	4.5	330	5.5	DOT
40	175-4.7-15.28							4.7	340	5.7
41	175-5.0-15.28							5.0	360	5.9
42	175-5.5-15.28							5.5	385	6.2
43	175-5.8-15.28							5.8	400	6.4
44	175-5.9-15.28							5.9	405	6.5
45	175-6.0-15.28							6.0	410	6.6
46	175-6.2-15.28							6.2	420	6.7
47	175-6.5-15.28							6.5	435	6.9
48	175-6.7-15.28							6.7	450	7.0
49	175-7.0-15.28							7.0	465	7.3
50	175-7.5-15.28							7.5	490	7.6
51	185-10.5-15.28	185 7.283in	152.8 2216PSI	254.7 3694PSI	AA6061	H	9.35 0.368in	10.5	590	10.3	DOT
52	185-10.7-15.28							10.7	600	10.5
53	185-13.0-15.28							13.0	700	12.2
54	185-15.3-15.28							15.3	820	13.8
55	185-15.7-15.28							15.7	835	14.0

Product quality assurance:
Raw material spectrom analysis, hardness test,yield strength test, tensile strength test,nondestructive examination(NDE)(magnetic powder inspection,ultrasonic flaw detection),hytrostatic test,burst test,impact test.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Company Profile
Shaoxing Ruiying High Pressure Vessel Co., Ltd. was one professional steel and aluminum gas cylinders manufacturer with the ability of research, development, sales and production capacity of 700000 pcs per year.

As an ISO-9001 certified manufacturer, products obtained PED/TPED CE certification, American DOT certification, German TUV safety certification and Australian market certification.
Customer satisfaction is our highest goal, quality is the most important principle guiding our work. Automated production equipment, professional inspection tools guarantee the safe and reliable product performance.
We will continue to enhance our competitive advantages with our "Excellent quality; diligent pursuit" philosophy through a position of strength, innovation, and partnership with our customers.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
company culture
Cooperation and win-win make business more friendly and sustainable, caring and teaching for employees to experience love and responsibility.
FAQ

1.Min order quantity?
Q:What's your min order quantity?
A:100PCS
2.Delivery Time?
Q: What is the delivery time of the gas cylinders ?
A: 10Days to 30Days once deposit received and specifications confirmed about the cylinder.
3.Certification?
Q:What certificates do you provide for gas cylinders?
A:We are authorised by PED/ISO/ DOT/ GB / TPED standards.
4.Sample?
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within two week, the lead time is 15-30 days.
5.Technical consultation ?
Q:Can you provide some techincal questions?
A:We would like to supply helpful solutions for all kinds of technical consultation,project design and market application.
