Concrete Stone Crusher Mining Machine Rock Crushing Plant Horizontal Shaft Impact Crusher for Mining Crushing

Product Description

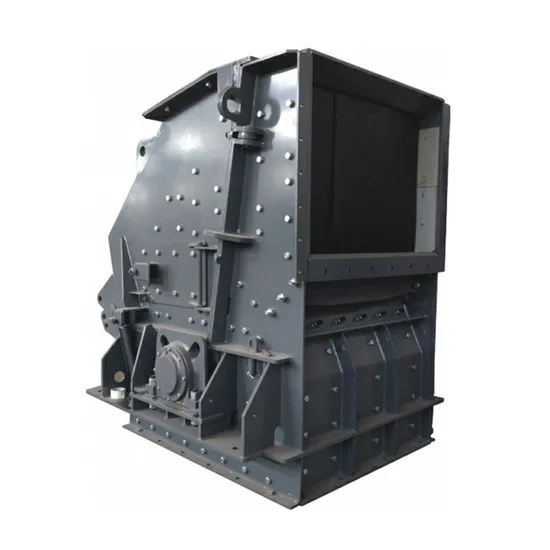

KF Series Horizontal Shaft Impact Crusher
Product Description
KF series impact crusher is a perfect combination of heavy-duty rotor design, high wear-resistant materials and crushing chamber design. It not only improves production capacity and product quality, but also reduces production costs and the consumption of wear parts.
In addition, it also minimizes equipment maintenance and improves all adjustment and operation devices. Therefore, KF series impact crusher can show unparalleled performance in applications such as coarse crushing, medium crushing, fine crushing and recycling.
Features:
1. The machine body adopts a sturdy steel structure to ensure extended service life, strong stability and simple maintenance.
2. The hammer head and liner are designed in a modular way to minimize the inventory of wear parts and increase the utilization rate of wear parts.
3. The hydraulic system can easily adjust the opening of the impact plate and the opening and closing of the casing, realizing the maximum operation rate of the crusher.
4. The chrome alloy main shaft is supported by double-row bearings and the bearing box is grease lubricated.
5. The wedge-type hammer head fixing device fixes the hammer head in the axial and radial directions, and is easy and quick to install and remove. 6. The turntable and back plate of the heavy-duty rotor (120mm thick) ensure smooth and smooth production and operation of the crusher.
7. The hydraulic unit can be started without stopping the machine, and the gap between the impact plate and the hammer head can be increased, so that the blockage will be able to pass through the crushing chamber smoothly, and then the impact plate will return to the original set position again.
8. The crusher's bearings and bearing seats are designed based on heavy-duty conditions. The double-layer sealing design of V-ring and O-ring is adopted to ensure that no dust and dirt enter the bearing seat
Product Parameters
Please click here for specific product parameters
Classic Case:
1. 2700 tons/hour granite crushing and screening production line
Ore raw material: granite
Compressive strength: 120-140Mpa, medium hardness
System output: 2700 tons/hour
Main machine configuration:
5475 gyratory crusher for coarse crushing---1 Set
KC900C cone crushers for medium crushing---2 Set
KC900MF cone crushers for fine crushing---2 Set
Vibrating screens---16 Set
SV229 vertical shaft impact crushers for shaping---4 Set
Roller crushers for sand making---4 Set Finished material: 0-4mm machine-made sand, 10-20mm, 20-28mm, the maximum sieve size is 30mm.
2.1500 tons/hour tuff crushing and screening production line
Ore raw material: tuff
Compressive strength: 140-180Mpa, high hardness
System output: 1500 tons/hour
Main machine configuration:
1200 gyratory crusher for coarse crushing---1 Set
KC600S cone crushers for medium crushing---2 Set
KC800 cone crushers for fine crushing---2 Set
Vibrating screens---8 Set
SV229 vertical shaft impact crushers for shaping---2 Set
Rod sand making machine---1 Set
Roller sand making machine---1 Set
Finished material: 0-4mm machine-made sand, 10-16mm, 16-28mm, maximum hole size is 30mm.
FACTORY TOUR
Huazhan is an equipment manufacturer dedicated to providing the best equipment solutions for mining and engineering customers. Relying on the technical advantages and channels of imported equipment, the company independently assembles and produces crushing and screening equipment, and is mainly engaged in equipment manufacturing, product sales, spare parts supply and services. The equipment solutions we provide cover the design, construction and installation of a full set of systems, operation training, and related on-site services, technical support, and spare parts supply. Our products are sold at home and abroad.
The company's main technical and service personnel are all backbones in internationally renowned crushing and screening companies. They have rich process experience and after-sales service experience in the field of crushing and screening. After years of experience and research, they have been able to fully master the various performances of the equipment and form the current full range of products. Since its production, the company's products have been trusted and recognized by domestic and foreign mining and engineering customers. Exhibition:
Certification:
Service: * Provide 7 * 24-hour service. Feel free to contact us by phone, email, instant messaging and social media. * After receiving your inquiry, reply within 8 hours, and provide the price plan within 24 hours. * Review and monitor project details and progress at no cost by a professional team of sales, engineers and QC personnel. * In the cost, production, inspection, packaging, delivery and other aspects to provide a full range of intimate services. * Provides professional support and assurance at all stages of sales.
FAQ:
Q: How about the quality of your products? A: We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery. Q: What is the payment terms? A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery. Q: Do you provide after-sale service? A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly. Q: When do you deliver the goods? A: We usually deliver the goods within 7-30 days depending on detailed product. We will advise the detailed delivery time according to your specific inquiry. Q: If I need a complete crushing plant, can you help us set it up? A: Yes, we can help you set up a complete production line and give you relevant professional advice. We have built many mining projects in China and overseas.
