Mediatek processor RAM 16G/256G SSD USB TYPE-C HDMI embedded computer Android 13 EDLA OPS for smart interactive whiteboard

Product Description

Mediatek processor RAM 16G/256G SSD USB TYPE-C HDMI embedded computer EDLA OPS for smart interactive whiteboard
Product DescriptionAndroid 13 Operating system OPC COMPUTER MODULE
The DS OPS Android computer is powered by the Mediatek 8195 chipset, featuring a powerful Quad core ARM Cortex-A78 + Quad core Cortex-A55 CPU. The DDR supports a maximum of 16G of memory and the EMMC storage can be expanded up to 256GB.
Google Officially authorized EDLA certificate
Effortlessly access Google accounts and the Play Store for all official Google applications. Enhances compatibility and eliminates concerns about apps. The OPS computer M8195 comes with pre-installed wireless Wi-Fi dual band and Bluetooth capabilities.Compatiable for all 80-pin OPS PC module slot Upgrade your current interactive whiteboard in classrooms with ease using the DS Tech M8195 OPS computer. With an OPS PC Module slot-in interface, this computer is compatible with any digital whiteboard that supports OPS technology, whether it's the latest interactive flat panels from DS Tech or your existing smart panels. Accessing the OPS embedded system is simple and efficient - just click on the signal input type OPS. Upgrade your classroom technology today and enjoy the convenience, speed, and cost-saving benefits of the DS Tech M8195 OPS computer.Rich interfaces, multiple possibilities

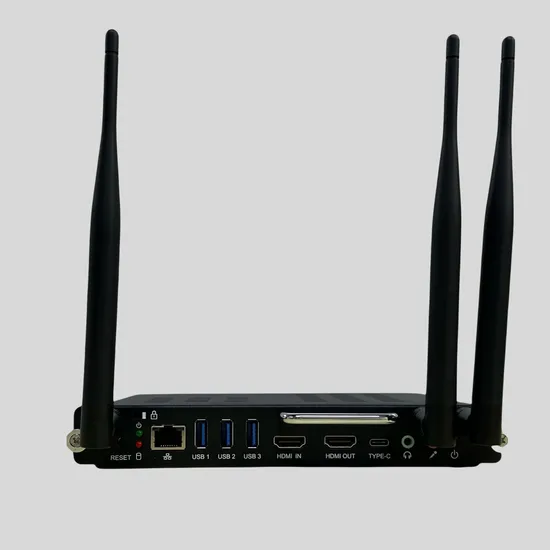

Stay connected to all your peripheral devices with our wide range of connectivity options. With HDMI in, HDMI out, USB TYPE-C, USB 3.0 ports, and Gigabit LAN RJ45, you'll have all the connections you need in one convenient package.All about interactive flat panel functions!-Digital whiteboard, annotation, wireless screen mirroring
The OPS computer with a traditional plug-in is typically equipped with the WINDOWS system. However, the DS M8195 OPS sets itself apart with its built-in Android 13.0 system. This unique feature allows for the integration of all interactive whiteboard functions within this compact OPS module. With the inclusion of interactive flat panel functions such as whiteboard, annotation, presentation, and wireless screen collaboration, this device offers a comprehensive solution for IFPD integration. Wireless Screen Miroring and Share for mobile, tablets and laptops
The DS M8195 enables wireless screen sharing for Windows laptops, Macs, iOS, and Android devices. With a maximum capacity of 9 devices, it allows seamless mirroring to interactive smart boards simultaneously. Experience effortless collaboration and productivity with our cutting-edge technology.
Product Parameters
Product Specification

System version	Android 13.0
RAM	8G/16G (optional)
ROM	128G/256G (optional)
CPU	Quad-core A78 +Quad-core A55 up to 2.2Ghz
GPU	Mali G57 MC5

3. I/O Port

Power Button	1
Reset Button	1
LAN	1(10M/100M/1000Mbps )
HDMI OUT	1(Supports up to 4K@60Hz )

Type-C OUT	1(Supports up to 4K@60Hz )
HDMI IN	1(Supports up to 4K@60Hz )
USB3.0	3(Fixed Android TV box)
AUDIO IN	1
AUDIO OUT	1
OPS Jack	1
DC IN	1

4. Other Functions

WIFI	Wi-Fi 6
BT	BT5.2

5. Power

Power Supply	12- 19V
Power Requirements	23W
Max Power	30W
Standby Power	≤0.5W

6. Physical Specifications

Dimension L ×W × H		180 × 119 ×30mm
Dimension(package) L ×W × H	1pcs	267 × 192 ×72mm
	10pcs	551 ×378 ×220mm
Net Weight		0.63kg

Gross Weight	1pcs	0.85kg
	10pcs	9.45kg

7. Environmental Conditions

Operation Temperature	0ºC - 40ºC
Operation Humidity	10% - 90%RH
Storage Temperature	-20ºC -60ºC
Storage Humidity	10% - 90%RH
Altitude	Below 5000 meters
