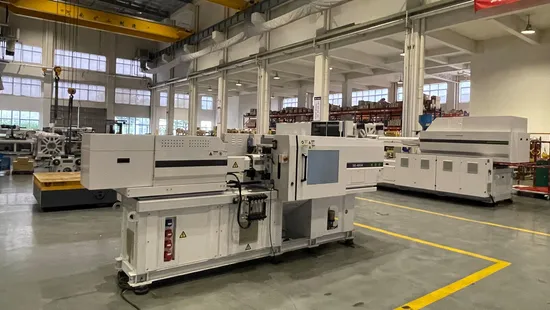

SE-900V Efficiency Precision Energy-saving Eco-friendly Intelligence All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-900V
CLAMP TONNAGE		kN	900
SRACE BETWEEN TIE-BARS		mm	420x370
PLATEN DIMENSION		mm	620x580
OPEN STROKE		mm	320
MOULD THICKNESS		mm	150-420
EJECTOR STROKE		mm	100
EJECTOR FORCE		kN	30
EJECTOR NUMBER			5
MACHINEWEIGHT		T	4.3
SCREW DIAMETER		mm	22	25	28	25	28	32	30	34	38
INJECTION CAPACITY		cm3	40	52	65	64	80	105	92	118	147
INJECTION WEIGHT (PS)		g	36	47	59	58	73	95	84	107	134
PLASTICIZING CAPACITY (PS)		kg/h	18	25	35	25	35	48	42	161	82
SCREW SPEED		rpm	400			400			400
HEATER BAND			3+1			3+1			3+1
HEATER POWER		kW	4.8			5.6			7.8
NOZZLE PRESSING FORCE		kN	15.7			19.6			19.6
STANDARD			130			165			240
INJECTION SPEED		mm / s	200			200			200
INJETION RATE (PS)		cm3 /s	76	98	123	98	123	161	141	182	227
INJECTION PRESSURE		Mpa	292	240	188	272	217	180	252	196	157
		kgf/cm2	2978	2448	1918	2774	2214	1836	2569	2000	1601
MAX.INJECTION HOLD PRESSURE		Mpa	233	192	156	217	176	144	202	157	126
		kgf/cm2	2382	1958	1594	2220	1795	1468	2055	1600	1281
TOTAL POWER		kW	16.8			20.6			28.2
OPTION			130H			165H			240H
INJECTION SPEED		mm / s	400			400			350
INJETION RATE (PS)		cm3 /s	152	197	247	196	246	322	247	318	397
INJECTION PRESSURE		Mpa	317	245	195	276	220	168	252	196	157
		kgf/cm2	3228	2500	1993	2815	2244	1718	2569	2000	1601
MAX.INJECTION HOLD PRESSURE		Mpa	253	196	156	221	176	135	202	157	126
		kgf/cm2	2583	2000	1594	2252	1795	1374	2055	1600	1281
TOTAL POWER		kW	19.8			28.8			37.8
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .
