Easy operation Bench lathe, Home or small industry work

Product Description

Features:
1. High-strength cast iron
2, the rail is high-frequency quenching, inlaid with high-quality wear-resistant pieces.
3, automatic centralized lubrication
4, the spindle box gear precision grinding, low noise.
5, more types of threads
6, electrical safety performance is good, high reliability.
7, with electromagnetic brake, bed color for a variety of options.
Specification:

Specification	C6241(D)	C6246(D)	C6253	C6260	C6266
Max. Swing over bed	Φ410mm	Φ460mm	Φ530mm	Φ600mm	Φ660mm
Max. Swing over cross slide	Φ224mm	Φ274mm	Φ329mm	Φ399mm	Φ459mm
Max. Swing over gap	Φ640mm	Φ690mm	Φ265mm	Φ300mm	Φ330mm
Max. Length of workpiece	1000mm/1500mm		1515mm/2015mm
Width of bed	300mm		400mm
Spindle nose	D1-6		D1-8 or A1-8
Spindle bore	Φ58mm (Φ82mm)		Φ82mm
Taper of spindle bore	M.T.#6		ME90/M.T.#5
Range of spindle speed	12 changes 25-2000r/min		12 changes 16-1600r/min
Max. travel of compound rest	120mm		320mm
Max. travel of cross slide	290mm		358mm
Leadscrew pitch	Inch 4 T.P.I metric 6mm		Inch 4 T.P.I metric 6mm
Max. section of tool	25x25mm		25x25mm
Range of longitudinal feeds	42 kinds 0.031-1.7mm/rev		50 kinds 0.031mm-0.85mm/rev
Range of cross feeds	42 kinds 0.014-0.784mm/rev		50 kinds 0.01mm-0.286mm/rev
Metric threads range	41 kinds 0.1-14mm		41 kinds 0.25-7mm
Inch threads range	60 kinds 2-112 T.P.I		60 kinds 4-112T.P.I
Diametrical pitches range	50 kinds 4-112 D.P.		50 kinds 4-112 D.P.
Module pitches range	34 kinds 0.1-7 M.P.		34 kinds 0.25-14 M.P.
Dia. Of tailstock sleeve	Φ60mm		Φ80mm
Travel of tailstock sleeve	120mm		180mm
Morse taper of tailstock sleeve	M.T.#4		M.T.#5
Power of main motor	5.5 kw (7.5HP)		7.5kw (10.0HP)
Power of coolant pump	90 w		90w

Hercules Machinery Equipment Ltd.
Random Attachments:
1·Lighting
2·cool down
3·3-jaw chuck + tray
4·Reducing sleeve
5·Oil gun
6·Wrench
7·Baffle plate
Optional accessories:
1· Center frame
2· 4-claw chuck + tray
3· Flower plate
4. Center frame
5· with knife holder
6. Live top
7. Spring screw guard
8. Digital display
9. Taper model
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided.
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 8 hours.
7. If you have customize requirement on specification, just let us know, we'll help you to work it out.

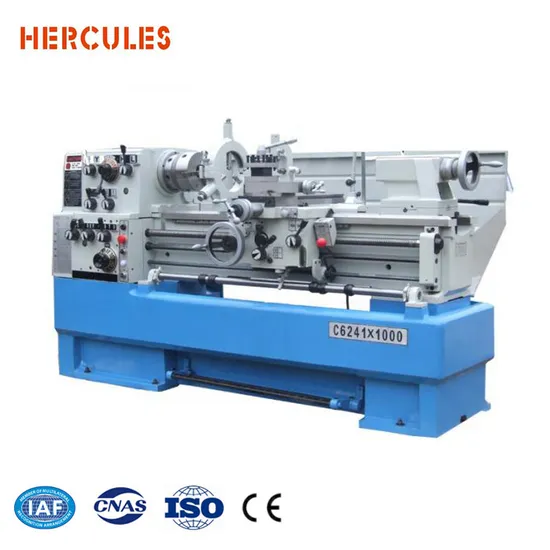

Machine Image
