China Monoblock Bridge Stone Machinery Granite Marble Stone Tile Cutter Machine Slab Countertop Machine

Product Description

Machine Features

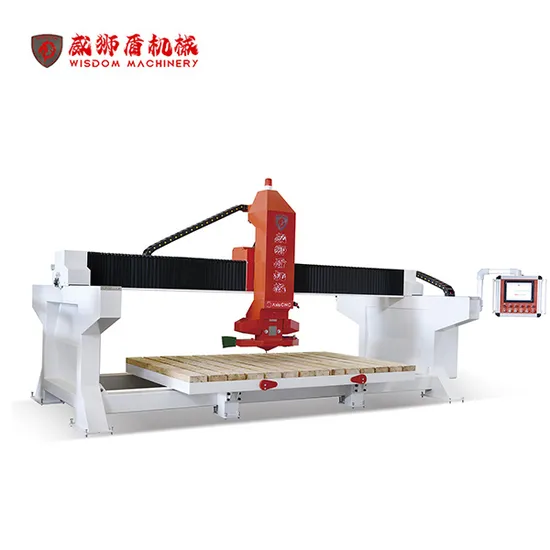

Wisdom 500CNC Bridge Cutting Machine is a 5-Axis simultaneous movement control machine with cutting,milling,carving and drilling fuctions,which can provide remote control and remote fault diagnosis.
-It adopts a stone CNC 5-axis special numerical control system to achieve the processing of irregular surfaces in one installation,facilitating,monoblock frame make it easy installation and transportation.
-Ether CAD bus servo.
-17-bit absolute value encoding counting,with power-off memory function.
-Supports CAD file import.
-Supports G-code 5-Axis linkage processing.
-Oil-bath bridge and rails.
-Equipped with industrial waterproof heavy-duty remote controller.
-Can be operated and controlled remotely,with remote fault diagnosis capabilities.
Specification

Model	Unit	Parameter
Main Motor Power	KW	11
Motor Speed	RPM	0-3600
Permanent Magnet Motor(Optional)	RPM	0-24000
Miter Degree	°	0-90
Milling Arbor	MM	5-25
Table Tilt Angle	°	85
Blade Size	MM	350-500
Table Size(Max Cutting Size)	MM	3200*2000
Water Consumption	M³/H	4
Weight	KG	3800
Specification	MM	5800(L)*3000(W)*2800(H)

Product pictures
Stone Fair
Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
Package and Loading
Similar Products
Q: ARE YOU MANUFACTURER ?
A: Yes,We are a branded company with its own factory,With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Q: CAN YOU MAKE CUSTIMZED STONE MACHINE?
A: Sure. We have experienced and professional engineer, to make custmized stone machine is our advantage,Welcome OEM and ODM orders.
Q: HOW TO ENSURE PRODUCT QUALITY?
A: Our machines are designed with American standard,raw materials have quality control tests and the qualified products after inspection will enter the production workshop.In addition, complete the QC comprehensive inspection before packaging. QC will conduct a comprehensive inspection of our products prior to shipment.
Q: WHAT'S YOUR MOQ AND DELIVERY?
A: Our MOQ is 1 set.For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.
Q: WHAT IS YOUR WARRANTY TIME?
A: We provide 2 years free parts warranty for our bridge saw.
Q: IS THE MACHINE EASY TO OPERATE?
A: Yes, Our machines are PLC full automatic,With easy operation interface available in English and Spanish.Feel free to contact us if have any questions or confusion,we will provide free professional online guide for you until you could use machine well.
