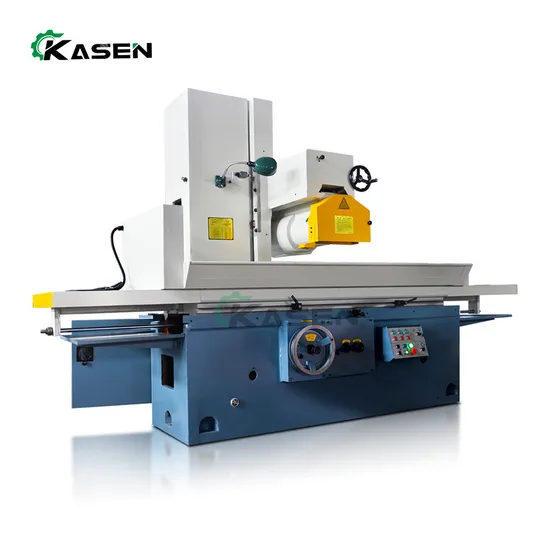

M7140 High Precision Universal Metal Magnetic Knife Surface Fine Grinding Machine Price

Product Description

M7140 High Precision Universal Metal Magnetic Knife Surface Fine Grinding Machine Price
Product Description
The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Main technical specifications	Description		Units	M7140x1000	M7140x1600	M7140x2000
	Size of work table(L x W x H)		mm	1000x400	1600x400	2000x400
	Max. Longitudinal movement of worktable		mm	1100	1700	2100
	Max. Distance from the spindle centerline to the worktable surface		mm	570	570	570
	Max. Cross movement of grinding herd		mm	450	450	450
	Max. Vertical movement of grinding head		mm	400	400	400
	Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01	0.01	0.01
		Each turn	mm	1	1	1
	Rapid lifting motor	Power	KW	0.37	0.37	0.37
		Speed	R/min	1440	1440	1440
	Abrasive wheel dim (L x D x W)		mm	350x127x40	350x127x40	350x127x40
	Speed of grinding wheel		r/min	1440	1440	1440
	Total power of motor		KW	9	10	12
	Power of spindle motor		KW	5.5	5.5	5.5
	Power of oil pump motor		KW	3	4	5.5
	Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
	Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
	Package(L x W x H)		mm	2800x1750x2350	4500x2000x2350	5500x2000x2350
	Net weight		Kg	4000	4100	4200

Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
