Laboratory Carding machine | lab mini carder

Product Description

Product Description

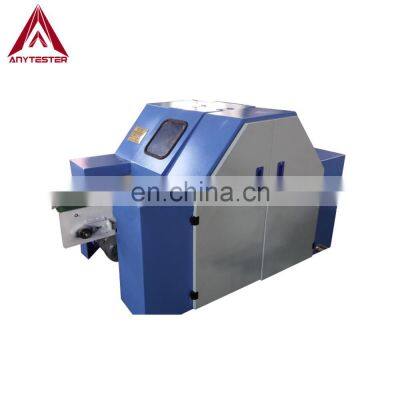

Product Description HY1002 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.Features1. Imported frequency converter control, high efficiency.2. Mini type machine, save researching cost and easy to operate and maintain3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.4. Can be used for cotton fiber or wool fiber (alternative)with different machine partsSpecification ModelHY1002Cylinder speed600rpmCylinder sizeΦ300 * 250mmDoffer sizeΦ160 * 250mmInput width260mmFiber typeCotton or wool (alternative)Fiber length22 ~ 42 mm or customizedOutput capacity0.25 ~ 1 kg per hour or customizedCan sizeΦ250*550mmPower220V/380V, 50/60Hz, 1200WDimension2100*800*1300mm
