PVDF Outside-in UF-200 Ultrafiltration Membrane for River Water Treatment

Product Description

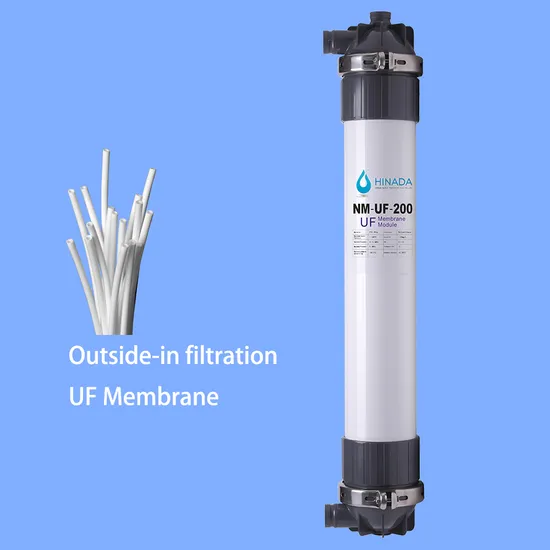

PVDF Ultrafiltration Membrane NM-UF-200 UF Membrane NM-UF-200 (8 Inch)
Model: NM-UF-200
Permeate Water Quality:
Suspended Matter >2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Description:
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
This UF Membrane NM-UF-200 is special designed for industrial mid project between 5000-----30000Ltr/Hour Project.

Model	NM-UF-200(Material: PVC allay)	NM-UF-200 (Material: PVDF)
Diameter of Hollow fibers	1.0/1.96mm	0.6/1.2mm
Filtration Method	Inside-out	Outside-in
Effective Membrane Area	28m²	38m²
Design Flow rate	60---160L/m².H	60---160L/m².H
Potting Material	Epoxy resin	Epoxy resin
Housing Material	U-PVC	U-PVC
Molecular Cut off( Dal)	100,000 Dalton	100,000 Dalton
Dimensions(mm)	ø 200*1485mm	ø 200*1355mm
Gross Weight	30.0kgs	30.0kgs
Feature	Price more reasonable, for clean water filtration that the input turbidity better less than 15NTU.	High anti-pollution and better flow rate, the input turbidity better less than 50NTU.

Application:
Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatmentIn drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water. Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
UF Technology advantages:
* System operates at a low pressure * Removes bacteria and viruses * Keeps essential minerals in water * Installs quickly and easily * Does not generate waste water * An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Packages:
Paper carton pack, 1 unit / carton, 31kgs/unit
Our service:
We are the manufacturer of UF Membrane, we can customize the UF Membrane or OEM Service according to your client requirement. According to client requirement design the UF System or provide the integrated water solution.
Our UF System or Module Photo:
