High Quality Assurance Plastic Tile Making Machine

Product Description

PVC+ASA Co-extrusion Roof tile making machine

Machine name	Introduction
SJZ80/156 conical twin-screw extruder	Function:make bottom layer Capacity:280-350kg/h Feeder with 2 screws,Feeding smooth and prevent bridging. 2 sets vacuum pots,when clean 1 set pot,do not stop machine running,because other pot also can use,otherwise there is 1 set vacuum pot,it will waste about 10m roof tile when clean pot. Big nut,this can protect the screw and barrel

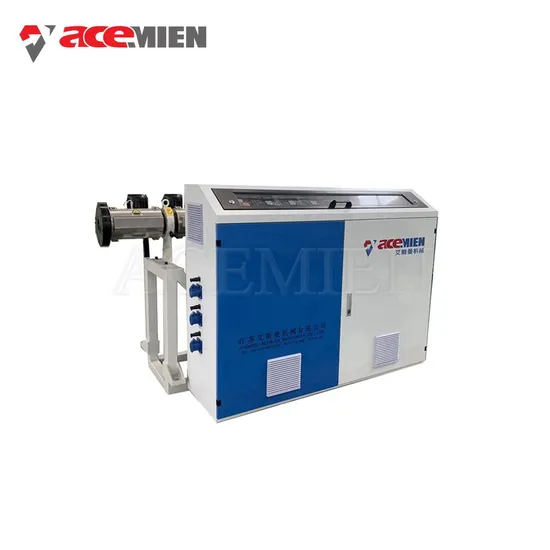

SJ50/30 single screw extruder	Function:make surface layer(ASA/PMMA) With vacuum loader and drying hopper,can make the ASA/PMMA granules dryer. Surface color can according to customers.
Extrusion mould and distributor	Function:make ≥ 2 layers roof tile,need the distributor,it can make surface layer and bottom layer together.
Embossing roller machine	Function:Embossing pattern, Make the surface more beautiful.The pattern can according to customers. With a type wheel ,customer can type your company name,brand,words etc.
Forming machine with trimming device	Function:make roof tile. Type 1: make corrugated tile forming machine with a length counter. type 2: make glazed tile forming machine witha wave counter.
Cutter	Function:according to customers needed length,cutting the roof tile.There is a PLC control,it can set 5 data.
Ridge tile Oven	Function: put the flat tile to the Oven, when the temperature reach to 150ºC,put the flat tile to the Ridge tile forming machine.
Ridge tile Forming machine	Function:according to ridge mould to make the ridge tile. Corrugated ridge:1set Glazed ridge:4sets All kinds of ridge tiles,we can according to customers requirements. Ridge tile mould: Alloy aluminum,surface with polishing process.

Auxiliary machine name	Introduction
Mixer unit	Function:mixing PVC powder, CaCO3, CPE, Stearic acid , Compound stabilizer ,ACR etc.
Crusher	Function:crush the waste roof tile and recycled PVC materials,such as PVC pipe,sheet,profile etc.
Pulverizer	Function:grind the PVC flakes to powder.

Product info:

Raw material & formulation	Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin. Surface layer: ASA granule
Description final product	Glazed tile: Width:880mm;1040mm Thickness: 1.5~3mm; Main tile:1set Ridge tile:4sets Corrugated tile: Width:920mm;1130mm Thickness: 1.5~3mm; Main tile:1set Ridge tile:1set All kinds of ridges,customers can choose.

FAQ
Q1. Are you a factory or a trading company?
A1: ACEMIEN is a high-end export brand of ACMACHINE Group. We have our own factory-ACMACHINE industry, and many high-quality suppliers. We provide "all-in-one solusion" for all series of plastic extrusion machinery. We provide you with superior quality and guaranteed satisfaction, you will never overpay again.

Q2. Are there other machine not listed in the catalog?
A2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3. Can I get free samples?
A3.ACEMIEN can send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
Q4. How long will I receive the quotation?
A4. Once we know the raw material, final product dimension and the special requirements, we will provide you a detailed quotation within 8 hours.
Q5. How do I get response quickly?
A5. If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)
