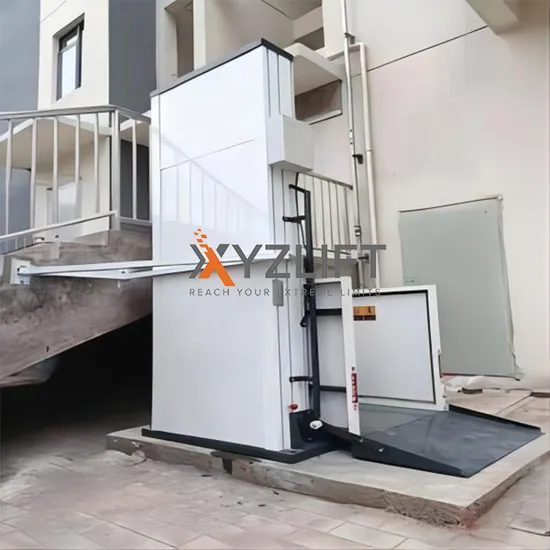

CE Approved Hydraulic Handicapped Lift Disability Lift for Home

Product Description

CE Approved Hydraulic Handicapped Lift Disability Lift for Home
XYZLIFT-Vertical platform lift is built with the end user in mind. Passenger comfort, simple-to-use operation and safety features allow people with limited mobility to operate the lifts independently or with assistance from an attendant. It is designed to provide cost-effective access to raised porches, decks, and other elevated areas for residential and commercial applications. Can easily installed in private homes or public buildings. Product Parameters
MODEL XYZVPL-1

Load capacity	250kgs
Platform size	1330mm*900mm (Custom)
Travel height	up to 15 meters
Normal speed	60mm/s
Entry & Exit	90°/180°/three-sided
Moter power	2.2kw
Power supply	220V/50HZ
Drive system	Hydraulic driven
Standard	EN81-41

Detail Show
1. Optional entrance/exit direction: 90°/180°/three-sided
2. Display panel:
3. Limit switch: when upper leveling switch failed, this switch will stop the platform.
4. Mounting bracket: Slide the bracket to the desired height to secure the cover plate to the wall.
5. Manual door opening: In the event of a power failure preventing the elevator doors from opening, remove the circular plug and lift the door upwards to open.
6. Manual down: This is a manually operated emergency lowering valve allowing the platform, even in the case of a power
failure, to be lowered to a level where the passengers can leave the platform.
Common installation scenarios
From our years of experience interacting with clients, we've identified 4 common installation scenarios. Our technical team offers 3D designs for pre-production confirmation tailored to the specific installation site, along with detailed installation instructions and guidance for that particular location.
Optional
Different Finish & Colors OptionalUpgrade your vertical lift platform with versatile cover options. Choose between stainless steel or steel plates available in various colors to perfectly complement your customer's surroundings. Extry/Exit Direction Optional
The entry and exit options include single-sided entry and exit, 90-degree entry and exit, 180-degree entry and exit, and three-sided entry and exit, which can be selected based on your specific usage requirements.
Project Show
Our VPL (Vertical Platform Lift) is suitable for both indoor and outdoor use. Whether it's a house, villa, bank, factory, or warehouse, we can solve the transportation problems between floors. Contact us to get a design plan and quotation that suits you.
Certifications
Package & FAQ
FAQ
Q1. What details are required for specifying a vertical lift platform?
A1. To precisely tailor a vertical lift platform to your needs, we need the details below:
Platform Size: The standard is 1430*1000mm. If you have a shaft, we'll design the platform size to match.
Travel Height: The vertical distance between floors
Loading and Unloading Directions: Specify access from one side, opposite sides, or three sides.
Additional Equipment: Any optional features you require, like a glass shaft, landing door, etc.
Q2. How many floors can a vertical lift platform go?
A2. Our vertical lift platform can travel up to 16m, covering 5 floors.
Q3. What color options are available for the vertical lift platform?
A3. Just let us know your preferred RAL color number, and we'll customize the platform's color to match your choice.
