4 in 1 Raytools Max 1.5kw 2kw 3kw Laser Welding for Metal Aluminum Galvanized Sheet Stainless Steel

Product Description

Product Description

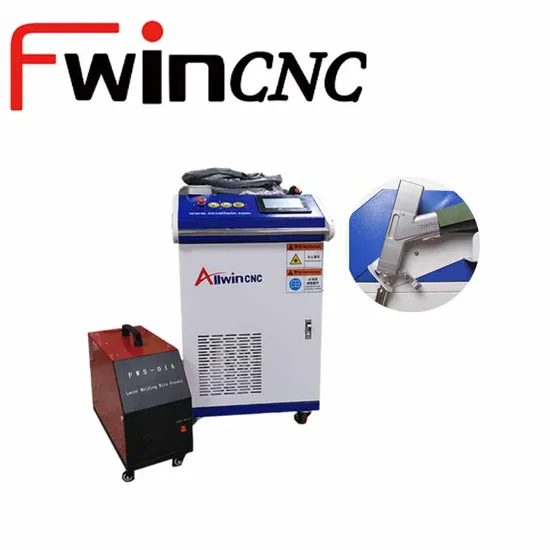

The 3-in-1 handheld laser welding cleaning and cutting machine is composed of a fiber laser generator, a handheld laser gun, a water cooler, and a 3-in-1 control system for laser welding, cleaning, and cutting. The machine is easy to operate and portable and can provide you with flexible and innovative laser solutions.
Product Features
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
★ The touch switch is equipped with a safety clip, and the laser beam can only be emitted when the welding nozzle touches the metal.
★ Red light positioning is used to verify the position during welding.

Machine Model	AW-1000W	AW-1500W	AW-2000W
Laser Power	1000W	1500W	2000W
Laser Wavelength	1064-1080nm	1064-1080nm	1064-1080nm
Welding Depth	2mm	4mm	7mm
Modulation Frequency	20-20kHz	20-20kHz	20-20kHz
Energy Stability	<3%	<3%	<3%
Blowing Protection	Argon/Nitrogen	Argon/Nitrogen	Argon/Nitrogen
Electricity Demand	AC 220V/50Hz	AC 220V/380V/50Hz	AC 220V/380V/50Hz
Machine Power	5.6KW	7.1KW	9.1KW
Cooling System	Water	Water	Water
Dimension	1130x590x1200mm	1130x590x1200mm	1130x590x1200mm
Weight	230kg	230kg	230kg

Weld penetration table:

Model	Carbon steel	Stainless steel	aluminium
1000w	2.5mm	2.5m	2.5mm
1500w	4mm	4mm	3mm
2000w	6mm	6mm	5mm
3000w	8mm	8mm	5mm

Product Application
The handheld laser welding machine can be widely used in the complicated and irregular welding processes of cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, power distribution boxes, stainless steel home appliances and other industries.it has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables.
It is used in thin stainless steel, iron, For welding of metal materials such as galvanized sheet,
it can perfectly replace traditional argon arc welding, electric welding and other processes.
Detailed Photos
Install welding nozzles and welding focus lens for welding works Install cleaning lens and cleaning tools for clean works

Welding with gun Laser Cleaning
CNC controller:
Pulse and interval time can reach 0.01 seconds; There are wire feeding and wire stop switching functions, which is simple and convenient.
Dual drive wheel feeding system,applicable to a variety of diameters.


Raycus Laser Source
It has higher photoelectric convers- ion effciency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmiss-
ion system to ensure a more stable and precise cutting effect in thick plate cutting.
Industrial Water Chiler:
With a complete cooling system, the whole machine is stable, efficient and durable.
Simple to us,stable performance energy saving and high efficiency.

Large fan cooling:
Even if it works 24 hours a day, it can make the laser source cooling faster


Sample Cutting Show
Packaging & Shipping


Company Profile
Established in 2017, ALLWINCNC are a manufacturing company specializing in the production of plasma and laser consumables.We want to build long-term relationships with customers rather than developing one-off deal.
We want to build long-term relationships with customers rather than developing one-off deal.
The core idea of ALLWIN is our commitment to achieving mutual success for our customers, shareholders, and employees through collaboration.
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across
the world. We need your machines running in order to keep your business running.
2),Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting/welding thickness,
then I will recommend you the most suitable machine for you.
3),Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting/welding machines , with 13 years experience.
4)Q. When I got this machine, but I don't know how to use it. What should I do?
Operation video and manual will be sent together with machine. Our engineer will do training online.If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
5)Q:How to choose suitable model?
Pls provide a photo of the product you need before or advise us your needs,we will give suggestion.
