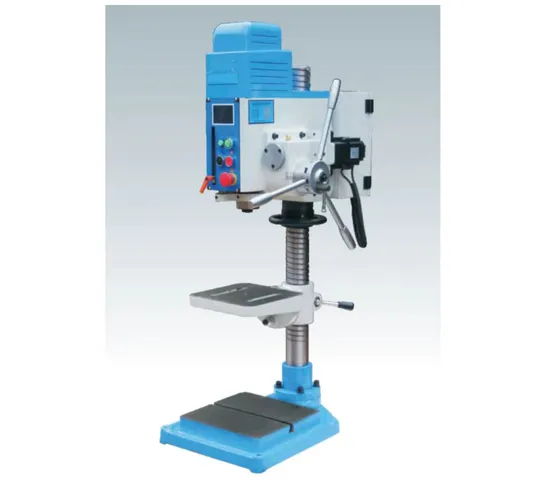

Intelligent High Efficiencyauto-Feed Drilling Machine Zwb4116

Product Description

Intelligent High EfficiencyAuto-feed Drilling Machine ZWB4116
Characters:
Combined function with drilling-reaming, drilling-millingaccordingto customers requirement.Both drilling and tapping haveautomatic feeding.Worktable automatic orientation,effective and pecise.Save time for tool replacement,improve the working efficiency.
Specification:

Model No.	ZWB4116
Item No.
Moving
Max.drilling capacity	16 mm
Max.tapping capacity	M10
Diameter of column	70 mm
Spindle
Max.spindle travel	Manual135 mm Automatic75mm
Spindle taper	MT2
Spindle speed	300-3000r/min three-phase 300-2500r/min single phase
Rotate angle of worktable along column	360°
Rotate angle of head along column	360°
Distance spindle axis to column surface	193 mm
Availability working area of worktable	250x250 mm
Availability working area of base	300x300 mm
Max.distance spindle nose to table	590 mm
Max,distance spindle nose to base	805 mm
Max.torque	16N.m
Other
Main motor power	1.5 kw
Feed motor power	90 w
Feed speed rate	20-204 mm/min
N.G./G.W.	145/165 KG
Max.external dimension	640x450x1370 mm
Packing dimension	730x500x1180 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
