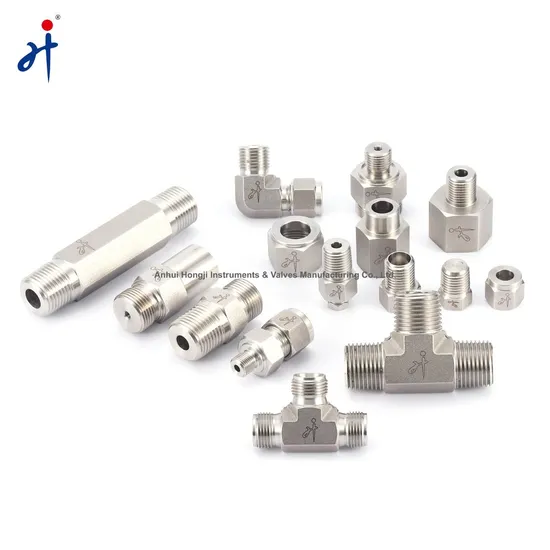

304/316 Stainless Steel Hex Nipple Pipe Fittings NPT/BSPT Male Thread Connectors

Product Description

Product Description
Tube Fittings
A fitting or adapter made by Hongji Instrument& Valve Manufacturing Co., Ltd. is used in pipe systems to connect straight sections of pipe or tube, adapt to different sizes or shapes, and for other purposes such as regulating (or measuring) fluid flow. These fittings are used in plumbing to manipulate the conveyance of water, gas, or liquid waste in domestic or commercial environments, within a system of pipes or tubes.
1. Forged Stainless Steel Tube Fitting Features& Applications:
frequently used in structural applications. Pressure and temperature are the most critical operational criteria for tube fitting. Tube fitting materials are frequently chosen in conjunction with tubing materials. Connection Methods among tubes and fittings are chosen based on media, pressure, and temperature properties. 2. Variety of Tube Fittings(Forged Stainless Steel, bearing pressure and temperature):
Body Type: Elbow, union, straight, tee, cross, reducer.
Connection end: Welding, dual ferrules, threads, flange.
3. Tube Fitting General Data(Forged Stainless Steel, bearing pressure and temperature):
Pressure Range: 3000Psi-6000Psi(2064Bar-4133Bar) Working temperatures: -54°C-649°C Size:1/8''-1'',DN6-DN20 Connection: Dual Ferrules, Flange, Thread, Welding. Application: Liquid or Gas, Steam, Water Body Material:304, 1316,316L, 321, Alloy 4. Industrial Application
Oil& Gas Power Plant Nuclear Energy Petrochemical Chemicals Water Treatment Semi-Conductor Food& Beverage Product Parameters

Name	Forging Straight Tube Adapter for Instrumentation
Model	HJLM-NPT4-SS	Volume Size	45mm(Length)
Type	Unions	Net Weight	0.096kg(M20*1.5-¢14)
Body Material	304, 316L, 321, etc.	Manufacturing Capacity	6000/Month
Type of Connection	Dual Ferrules+Female Thread	Warranty	1 year
Manufacturing	Forging and CNC	Norms	ISO/GB/JB/DIN
Application	Nontoxic Liquid or Gas, Steam, Oil	Test Norms	API 598/ GBT-13927-2008
Pressure Range	0-16MPa /0-2320psi /0-160bar	Certificate	ISO/TUV
Temperature Range	-10-150ºC /14-302ºF
Size Range	M20*1.5-1/2G--¢8-¢14
Thread	BSPP BSPT NPT
