Chinese Manufacture Small Excavator We26 2.7ton Digger Hammer Rubber Crawler

Product Description

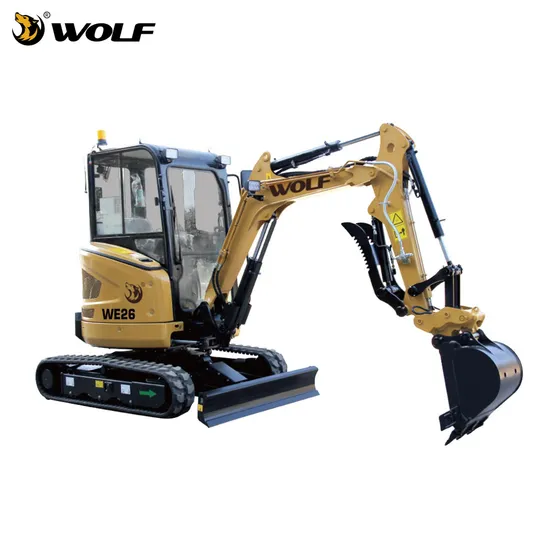

WE26 mini excavator is hot selling in US and Canada, with Yanmar tier4 engine meeting EPA emission standard.

Standard configuration: Yanmar 3TNV80 Tier4/Euro5 engine,14.6KW,
AMCM pump and Main valve,
Hydraulic pilot control lever,
Swing arm, Rubber track
Heating systerm in cabin
Standard backhoe bucke
Details:

Specification:

Engine Model	Yanmar 3TNV80F Euro5 14.6kW/2400rpm
Type	Direct injection, water cooled, natural intake
No. of cylinder	3
Hydraulic pump model		AMCA
Max. Flow	L/min	76.8
Working pressure	Mpa	22
Control valve model		AMCA
Swing motor model		EDDIE
Travel motor model		EDDIE
Fuel tank capacity	L	35
Hydraulic oil tank capacity	L	42
Travel speed	Km/h	2.0/3.8
Swing speed	r/min	10
Max. Climbing degree	%	58
Arm digging force	KN	14.8
Bucket digging force	KN	24.5
Overall length	mm	4159
Overall width	mm	1500
Overall height(to top of boom)	mm	1636
Overall height(to top of cab)	mm	2500
Counterweight ground clearance	mm	535
Min ground clearance	mm	320
Tail swing radius	mm	775
Track ground length	mm	1560
Track length	mm	2040
Track width	mm	1550
Track gauge	mm	1250
Track shoe width	mm	250
Max. Digging height	mm	4132
Max. Dumping height	mm	2742
Max. Digging depth	mm	2485
Max. Vertical wall digging depth	mm	2240
Max. Digging reach	mm	4610
Max. Digging reach at ground level	mm	4494
Min swing radius	mm	2096
Height of counterweight	mm	300
Arm length	mm	1150
Boom length	mm	2015
Boom deflection angle left/right	°	47/74

Shipment:
6 sets can be loaded in 40ft container.
Customer Project and Evaluation
Certificate Company Profile

FAQ
Q:Why should I choose Wolf instead of other brands? A:With 12 years' exporting experience, Wolf has been a well known brand in the market now you can see Wolf machines in more
than 100 countries. What we can provide. 1. Quality machines.CE certificated 2. More competitive price based on same configuration
machines 3. More timely and effective service base on same price.

Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.

Q: What is your delivery time?
A:The delivery time is around 30 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A:Normally we use T/T 30% deposit for production. balance 70% before shipment.

Q: Can I see the loader production progress after order?
A:Yes,during production. we could take some photos/videos for your reference.
Q:What kind of service can I get from you if l buy? How can I get parts?
A:We have 1 year warranty for each machine. within 1year if any parts broken because of quality issues. the new parts would be sent to
you free of charge, within 5 working days.We have professional after sales department to support for you at any time.
